MP6 Ultra High Density MPO/MTP Fiber Patch Panel 1U 144 Ports

Name: MP6 Ultra High Density MPOMTP Fiber Patch Panel 1U 144 Ports
Brand: Unifiber or OEM
Price: 1 USD

Buy cheap MP6 Ultra High Density MPO/MTP Fiber Patch Panel 1U 144 Ports product

Brand Name : Unifiber or OEM

Model Number : MP6

Certification : ROHS

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100pcs/day

Delivery Time : 5~8days

Packaging Details : Carton

Product : Ultra High Density MPO/MTP Fiber Patch Panel

Rack Height : 1U/2U/4U

Capacity : 1U-144F, 2U-288F and 4U-576F

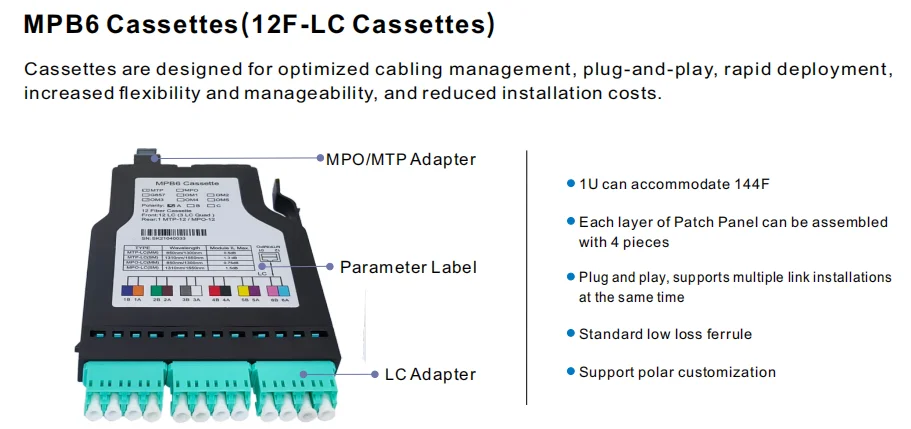

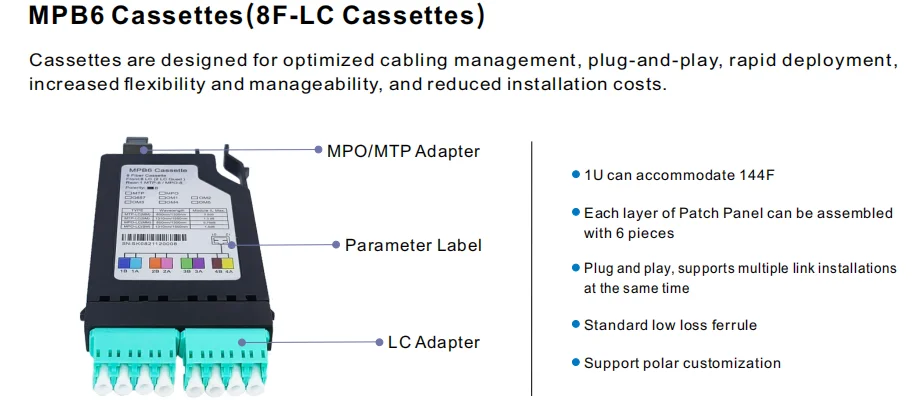

Cassette module : 8/12/16/24 Fibers

Material : Cold rolled steel

Installation : 19-inch rack rail

Contact Now

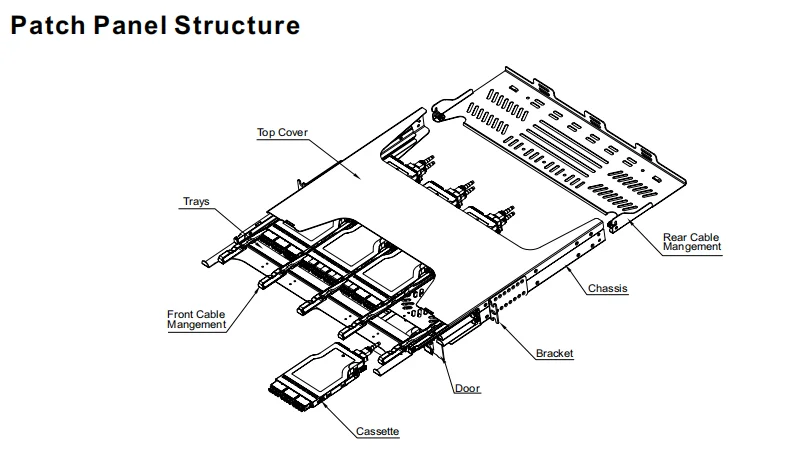

The modular design and the front and rear pull-out mechanical structure are the biggest features that differentiate this product from competing products, including rapid deployment, rapid response, and accurate troubleshooting. The optional LC adapter supports up to 1U-144F, 2U-288F, and 4U-576F, and the optional CS adapter supports up to 1U-216F.

MP6 Ultra High Density MPO/MTP Fiber Patch Panel 1U 144 Ports

Feature
Modular design, can be pulled out by rails
Each floor can install 4 or 6 cassettes
Provides front and rear cable management functions* 1U supports up to 144-core LC or 216-core CS connections
2U supports up to 288-core LC, and 4U supports 576-core LC connections.

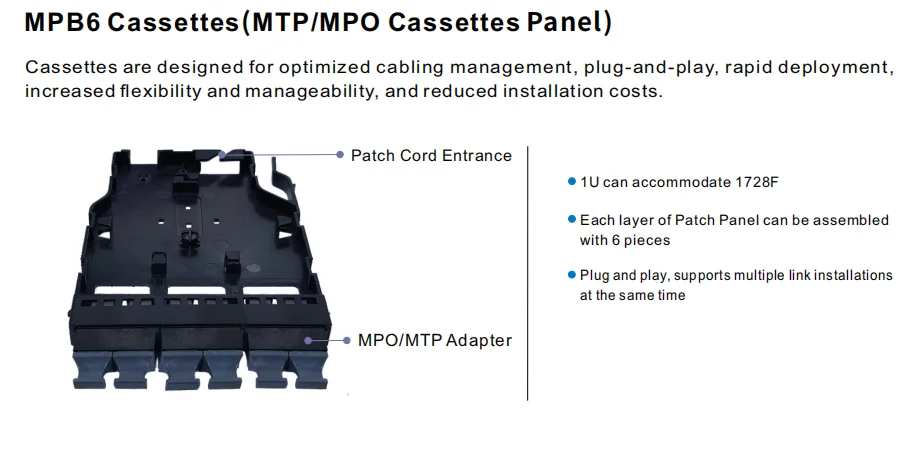

1U supports up to 1728-core MPO/MTP access
Support MTP/MPO-MTP/MPO conversion
Optional MTP/MPO/LC/CS connection

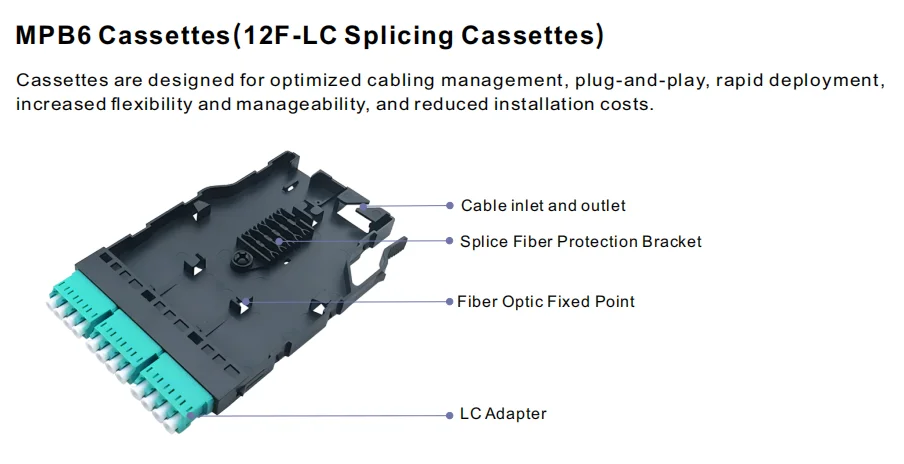

Support pigtail splicing

Specification

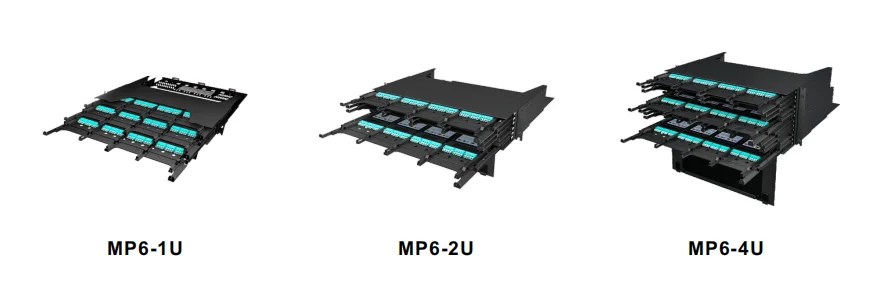

Model	Capacity	Material	Modules	Color
MP6-1U/144F	144 Port	cold rolled steel plate	8 or 12F module	Black
MP6-2U/288F	288 Port	cold rolled steel plate	8 or 12F module	Black
MP6-4U/576F	576 Port	cold rolled steel plate	8 or 12F module	Black

MP6 Ultra High Density MPO/MTP Fiber Patch Panel 1U 144 Ports

MP6 Ultra High Density MPO/MTP Fiber Patch Panel 1U 144 Ports Images
