Brand Name : Unifiber or OEM
Model Number : 18 Port FAT CTO Outdoor Terminal Box
Certification : ROHS
Place of Origin : CHINA
MOQ : 10
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 1000pcs/day
Delivery Time : 5~8days
Packaging Details : Carton
Product : Optitap Terminal Box
No of Ports : 18
Material : PP or PC+ABS
Application : FTTx
Installation : Pole-mounted, Aerial-mounted, Wall-mounted
Waterproof grade : IP68
Pre-connectorized ODN Boxes Caja NAP CTO Preconectorizada offers a versatile solution for linking drop cables and feeder cables in Fttx networks. It can accommodate the needs of at least 16 users. It as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Features
* The bottom shell and the upper cover are fixed with screws,removable.
* Material: PP.
* Moisture proof, waterproof, dust-proof, anti-aging.
* Protection level up to IP68.
* The interior is equipped with 1x2 FBT splitter+ 1x16 PLC splitter.
* Installation method: pole-mounted, aerial-mounted, wall-mounted.
Applications Environment
* Operation temperature: -40 ºC~+65 ºC
* Installation temperature: -5 ºC~+40 ºC
* Storage temperature: -40ºC~+65 ºC
* Atmospheric pressure: 70~106Kpa
* Relative humidity: ≤93%(+40℃)
Specification
![]() |

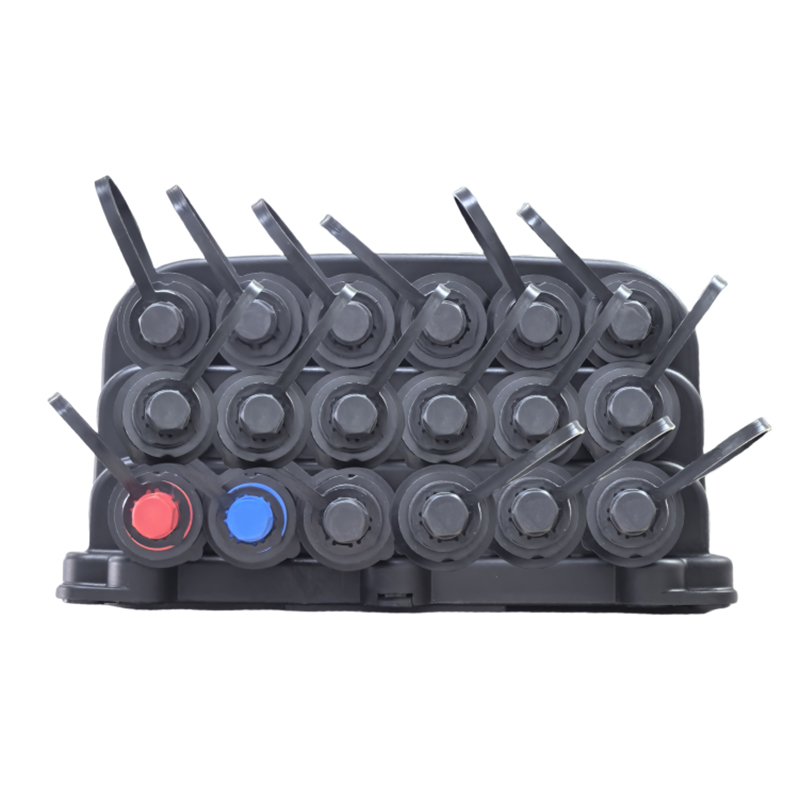

18 Port FTTH Optitap Pre-connectorized FAT CTO Outdoor Waterproof NAP Termination Box Images |
