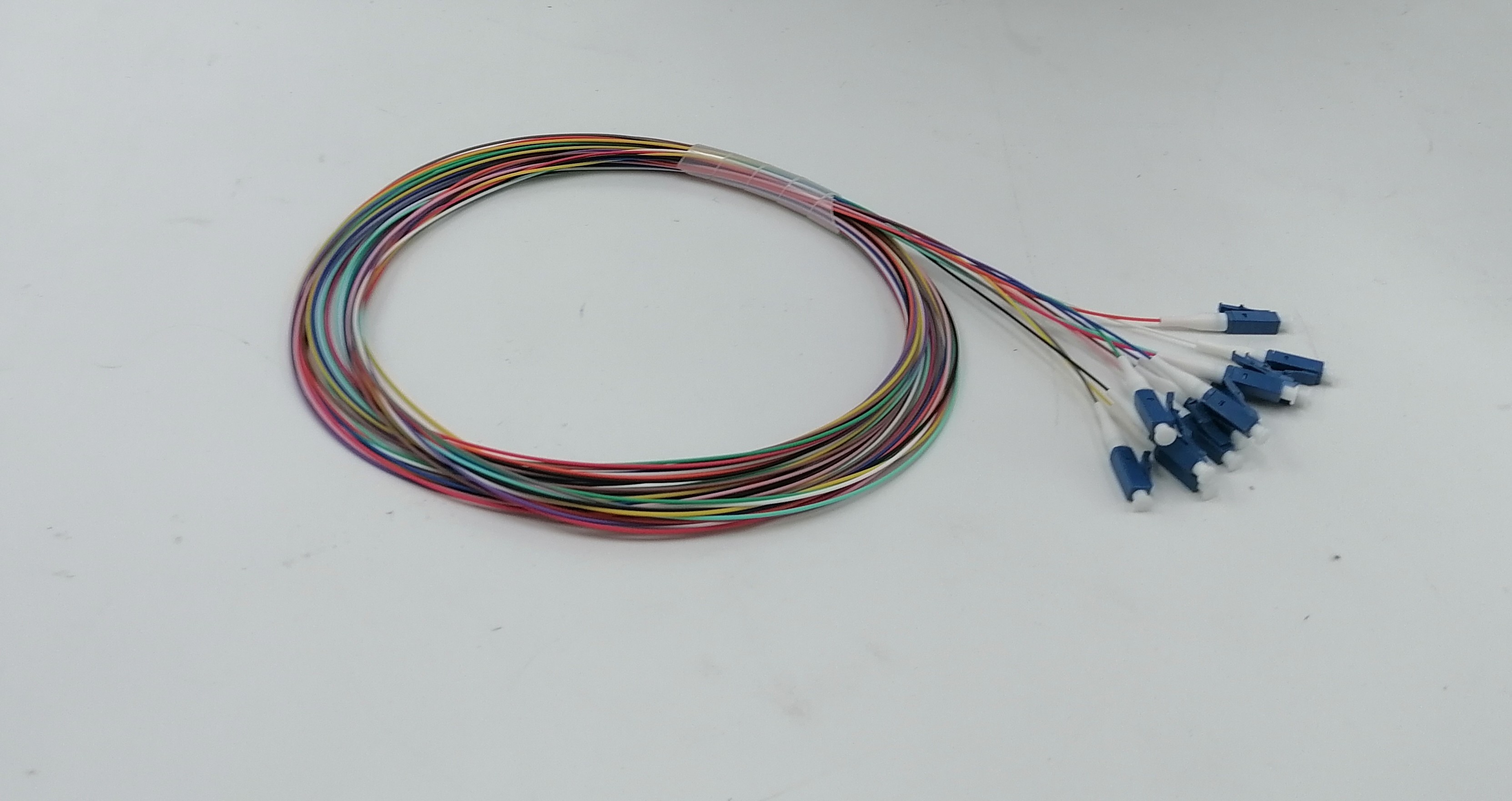

12 Color-Coded 0.9mm Unjacketed LC UPC Fiber Pigtails OS2 Single Mode 1m (3ft)

Name: 12 ColorCoded 09mm Unjacketed LC UPC Fiber Pigtails OS2 Single Mode 1m 3ft
Brand: Unifiber or OEM
Price: 1 USD

Buy cheap 12 Color-Coded 0.9mm Unjacketed LC UPC Fiber Pigtails OS2 Single Mode 1m (3ft) product

Brand Name : Unifiber or OEM

Model Number : 12 Color-Coded Fiber Pigtail

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 5~8days

Packaging Details : Carton

Product : 12 Fiber Pigtails

Connector : LC/UPC

Fiber Type : OS2

Cable : 0.9mm Tight Buffer

Color : 12 Color-Coded

Cable Jacket : Unjacketed

Length : 1m (3ft)

Contact Now

12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.

Features

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius

Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced

Easy-strip 900µm Tight-buffered Coating

Precision Zirconia Ferrule Connectors Ensure Low Loss

Support Both Fusion and Mechanical Splicing

Application

Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc.

Specification

Parameter	Singlemode Fiber			Multimode Fiber
Parameter	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Exchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
Fiber model	φ0.9mm, φ2.0mm, φ3.0mm
