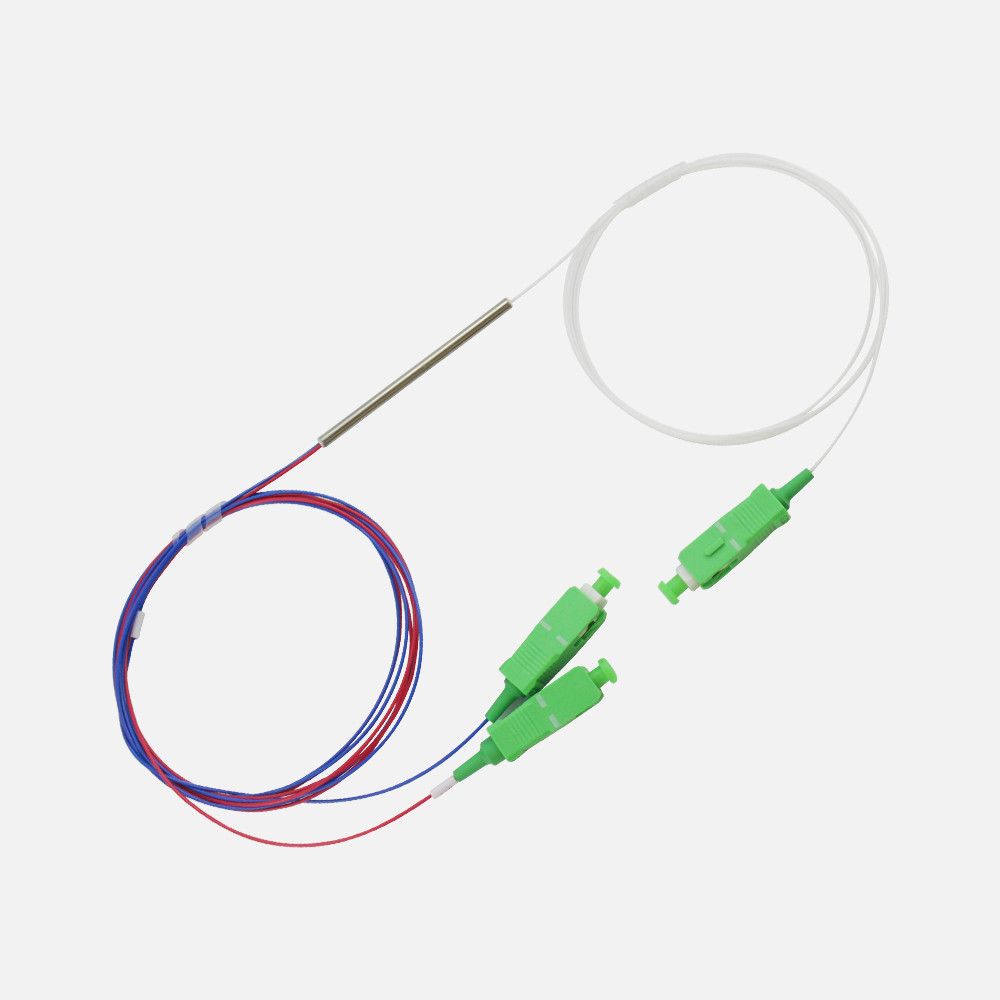

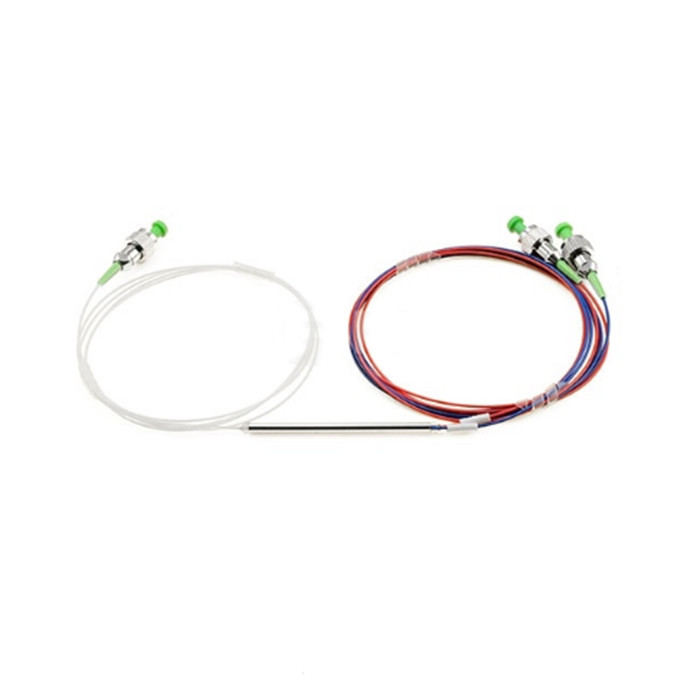

1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : Fused WDM Splitter

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Blister Case

Product : Fused WDM Splitter

Wavelength : 980/1550 or1480/1550nm

Package : Steel tube

Connector : SC/FC/ST/LC

Fiber : Single mode Fiber

Application : EDFA

Contact Now

Single mode WDM components can effectively combine or separate single mode signals at two wavelength ranges. Available in three wavelength ranges (980/1550 nm, 980/1310 nm, and 1480/1550 nm). Based on the proven Fused Biconic Taper (FBT) technology, these multiplexers provide broad operating wavelengths and low insertion loss. All our WDM are available with any connector style (FC as standard, other connectors available upon request), and include 900um loose tube to protect the fibers.



Features Applications
Low Insertin Loss Erbium Doped Fiber
High Isolation Amplifiers (EDFA)




Performance Specifications

Parameter 980/1550nm WDM 1480/1550nm WDM
Grade P A P A
Max. Insertion Loss (dB) 0.20 0.25 0.25 1.35
lsolation(dB) ＞20 ＞18 ＞16 ＞14
Polarization Sensitivity(dB) ＜0.05 ＜0.10 ＜0.10 ＜0.15
Operating Wavelength (nm) 980±10/1550±20 1480/1550±5
Directivity(dB) ＞60
Operating Temperature (℃) -10~+70(-40 ~ +85 available upon request)
Storage Temperature (℃) -40~+85
Fiber Pigtail Length (m) 1 m or custom length
Fiber Type Corning HI 1060 or OFS980, Corning 980, Corning SMF-28e
Port Configuration 1x2 or 2x2
Package Dimension F,G,H

Note: All values referenced are without connector.

1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
