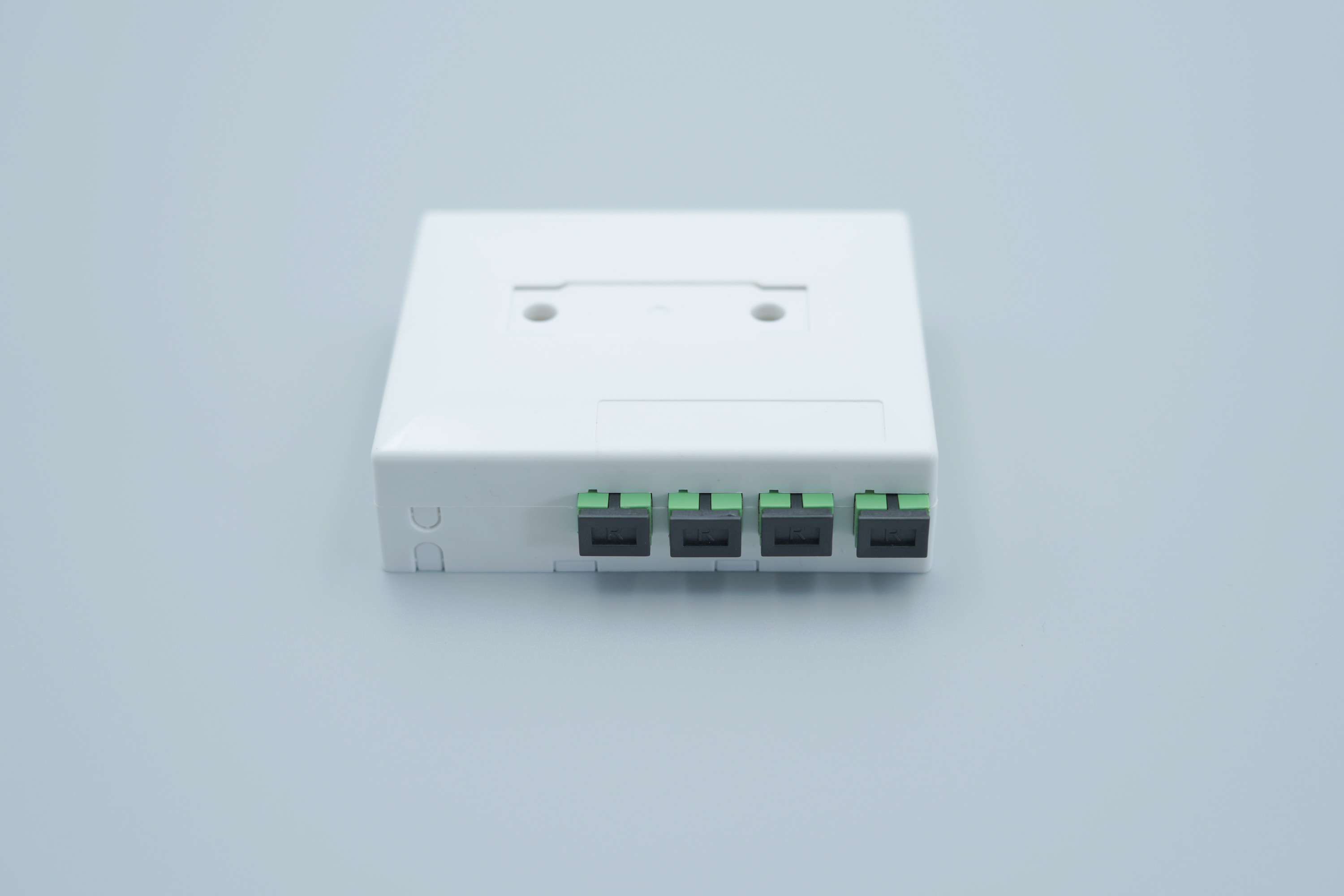

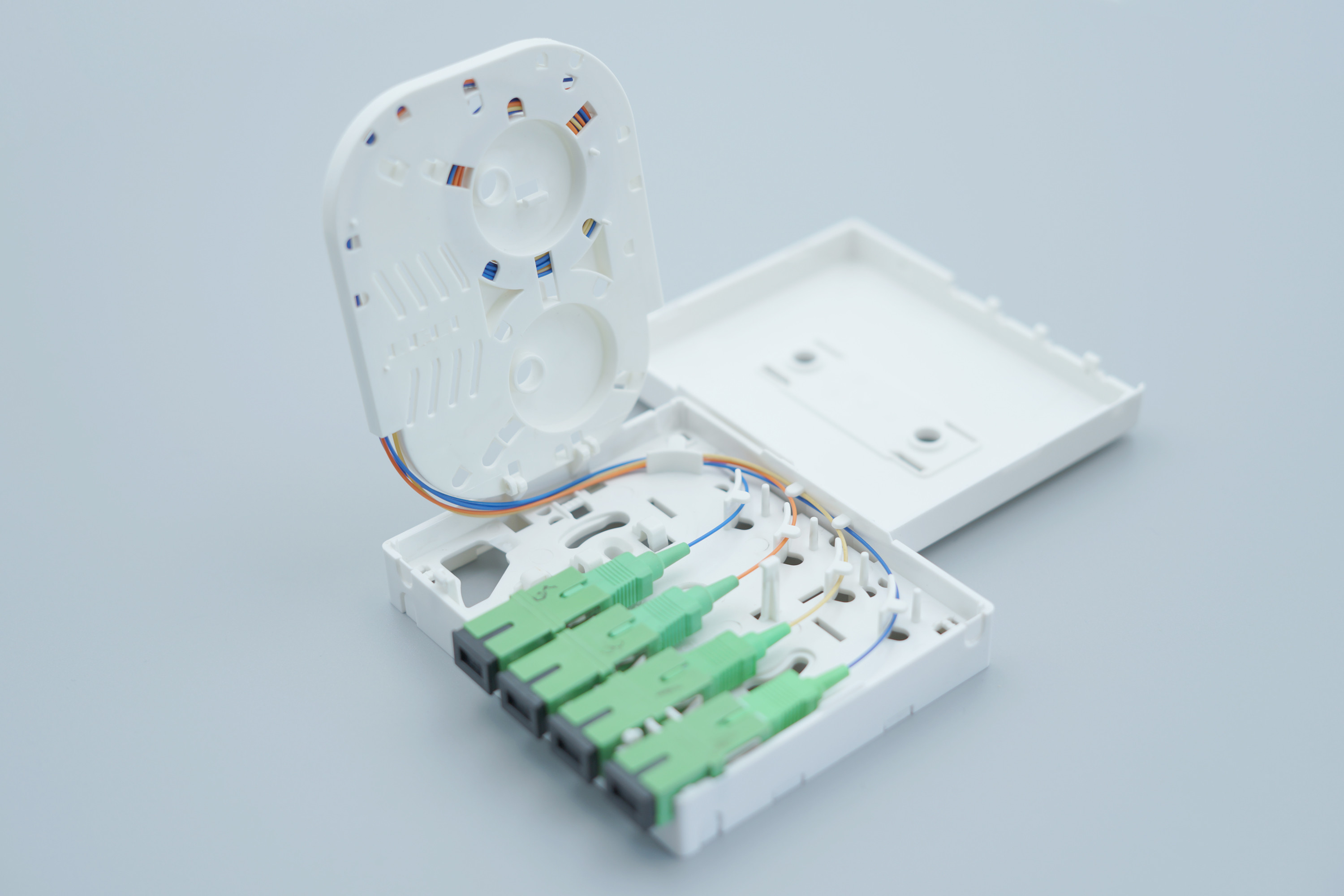

Ftth 4 Ports SC APC Fiber Optic Wall Plate Outlet 40mm Radius

Name: Ftth 4 Ports SC APC Fiber Optic Wall Plate Outlet 40mm Radius
Brand: UNIFIBER-OEM
Price: 1 USD

Buy cheap Ftth 4 Ports SC APC Fiber Optic Wall Plate Outlet 40mm Radius product

Brand Name : UNIFIBER-OEM

Model Number : FTB104B-S2

Certification : ROHS

Place of Origin : CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : Ftth 4 Ports Fiber Optic Wall Plate Outlet

Ports : 4 Ports

Connector : SC/APC

Material : ABS

Dimension : 100*83*30

Application : FTTH

Contact Now

Ftth 4 Ports Fiber Optic Wall Plate Outlet SC/APC is used for the indoor cable's termination in building and villas, suitable for multiple fiber connection method.

Feature
1. Small size, light weight, beautiful appearance
2. Installed on the wall, with mechanical protection.

Technical
* Fiber radius of curvature:≥40mm
* Optical disk additional loss: ≤0.01dB
* Temperature range: -40°C~+60°C

Specification:
Model No.	FTB104B-S2	Outer carton(mm)	500×390×320/200pcs
Dimensions (mm)	1008330	CBM(m³)	0.063
Weight(Kg)	0.062	Gross weight(Kg)	13.8
Cable inlet/outlet	10 / 4	Accessories
Cable diameter(mm)	Φ3mm or Drop cable(2*3mm)	M4×25mm Screw	2 pcs
Max core capacity	4(single core)	Expansion	2 pcs
Adaptor	SC without lug
