PVC LSZH 8/12/24 Fiber MPO Trunk Cable Type B Polarity SM MM

Brand Name : UNIFIBER-OEM

Model Number : MPO Trunk Cable Patch Cord

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Individual package

Product : 8/12/24 Fiber MPO to MPO Trunk Cable Patch Cord

Fiber Count : 8/12/24

Connector : MPO male or female

Polarity : Type B

Fiber Type : SM/MM/OM3/OM4

Cable Length : 0.5/1/2/3m Or Customized

Cable Jacket : PVC,LSZH,Plenum (OFNP)

Jacket Colors : Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow

Application : 10G/40G/100G/400G Data Center Solution

Contact Now

8/12/24 Fiber MPO to MPO Trunk Cable Patch Cord a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.



Features

Insertion loss type available in Standard, Elite / Low Loss
Fiber count available in 8, 12, 24

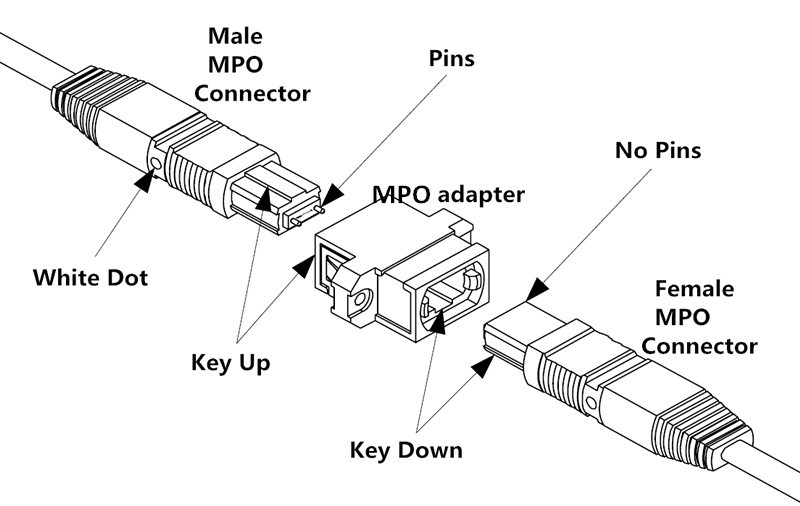

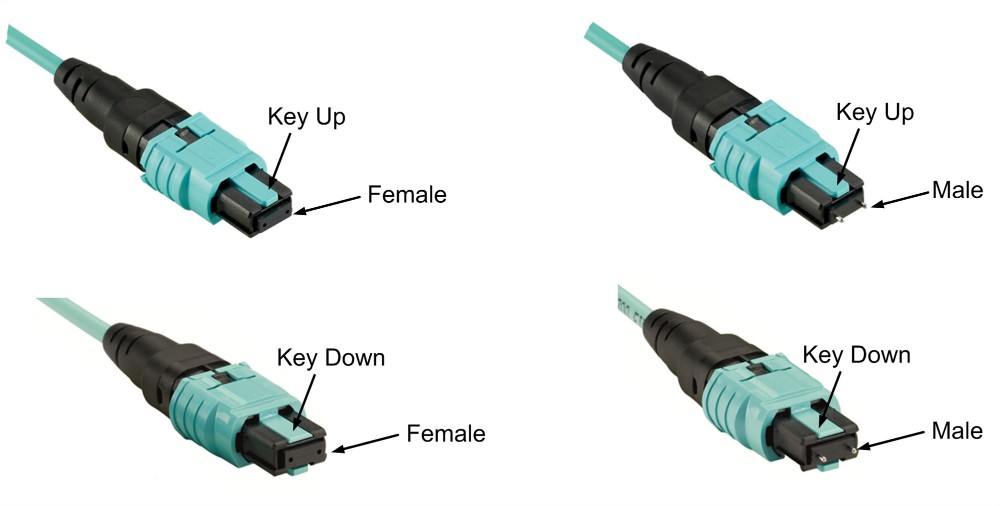

MTP/MPO connector type available in Male, Female
Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
Cable jacket type available in OFNR, LSZH, OFNP
Fanout length available in 0.5m, 1m, etc.
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
Factory terminated & tested with guaranteed quality
High density to dramatically save space
Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS


Applications
Data Center Interconnect
Backbone Installations
Telecommunication Networks
LAN/WAN Premises





Parameters

Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
24F/APC ≤0.75 ≥60 ≤0.35 ≥60
48F/APC ≤0.75 ≥60 　 　
MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
24F/PC ≤0.50 ≥20 ≤0.35 ≥20
48F/PC ≤0.50 ≥20 　 　
LC/SC/FC/ST SM APC ≤0.30 ≥60 ≤0.10 ≥60
UPC ≤0.20 ≥50 ≤0.10 ≥50
MM PC ≤0.20 ≥30 ≤0.10 ≥30



Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP ≤0.3dB GR-1435
△IL After 500 Matings LC/SC/FC/ST ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter)
Min Bend Radius (Static ) 15*OD (Cable Diameter)



Environment Conditions
Item Criteria Conformance
Operation Temperature -40~60

IEC 61753-1


























Storage Temperature -45~85
PVC LSZH 8/12/24 Fiber MPO Trunk Cable Type B Polarity SM MM
PVC LSZH 8/12/24 Fiber MPO Trunk Cable Type B Polarity SM MM
