G657A2 EPFU Air Blown Fiber Cable 2 4 6 8 12 Core SM For Microduct Installation

Product Categories
Shenzhen Unifiber Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G657A2 EPFU Air Blown Fiber Cable 2 4 6 8 12 Core SM For Microduct Installation

  • 1
  • 2
  • 3

Brand Name : Unifiber or OEM

Model Number : EPFU Air Blown Fiber Unit

Certification : ROHS

Place of Origin : China

MOQ : 10KM

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500km/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : EPFU Air Blown Fiber Unit

Fiber Counts : 2/4/6/8/12 core

Fiber Type : G657A2

Suitable duct : 3/2.1mm or 5/3.5mm

Sheath material : low friction HDPE

Blowing distance : 500-1000m

Contact Now

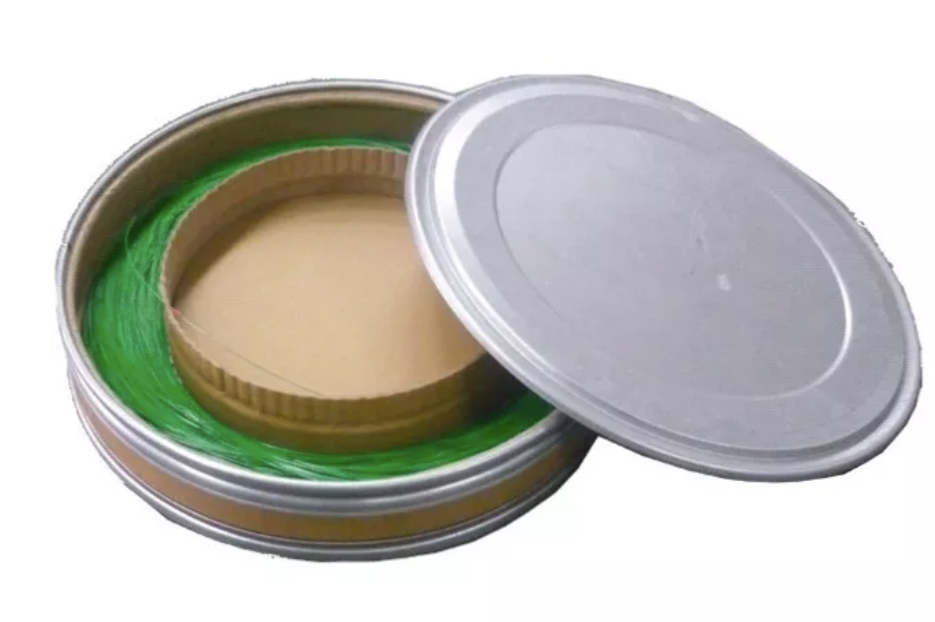

2/4/8/12 fibers G652D G657A1 G657A2 Air Blown Fiber Cable EPFU Fibre Unit is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow.It can be blown into the microduct of 5.0/3. 5mm. The fibres are coated with a soft acrylate resin which provides excellentdimensional and thermal stability to cushion th e fibres, in addition, the r esin can be e asily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction.

Features:

2,4,6,8 and 12 fibres options.
Stable structure, good mechanical and temperature
Designed with special grooves to adavance blowing distance
Light weight and proper stiffness, repeat installation
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.



Basic Performance



Fibre Count

2 Fibres

4 Fibres

6 Fibres

8 Fibres

12 Fibres

Outer Diameter (mm)

1.15±0.05

1.15±0.05

1.35±0.05

1.50±0.05

1.65±0.05

Weight (g/m)

1.0

1.0

1.3 1.8 2.2

Min Bend radius (mm)

 50 50 60 80 80

Temperature

Storage:-30°C ~ +70°C Operation:-30°C ~ +70°C Installation:-5°C ~ +50°C

Cable service life (estimate value)

25 years
