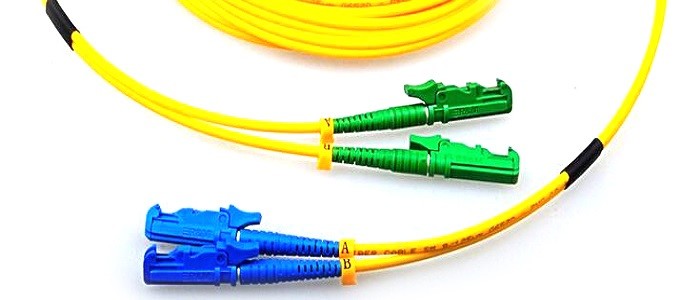

E2000/APC to E2000/UPC, Duplex, Singlemode Patch Cord
E2000 fiber optic patch cord also called e2000 fiber optic jumper/patch cable, includes e2000 single mode or multimode,simplex or duplex fiber optic patch cord with 9/125um,50/125um,62.5/125um indoor fiber optic cable. the usual polishing type is pc,upc and apc.
Fiber Optic E2000 Distribution Cable Patch Cord for Distribution Cable Single mode is widely used as its good performance.E2000 Fiber Optic Patch Cords features a spring-loaded shutter used to protect the ferrule from dust and E2000ratches. we supplies possibly the highest quality E2000 Fiber Optic Patch Cord available, which address the highest of specifications encountered in the telecommunications market. These E2000 Fiber Optic Patch Cord offer unparalleled insertion loss mating figures, exhibit exceptional repeatability, whilst maintaining the already well established, superior features of the E2000 optic pigtail family.The E-2000 Fiber Optic Patch Cable Series is one of the few fiber optic pigtails featuring a spring-loaded shutter which fully protects the ferrule from dust and scratches. The shutter closes automatically when the pigtail is disengaged, locking out impurities which could later lead to network failure, and locking in potentially harmful laser beams.
The Fiber Optic Patch Cords is easy to install, with a push-pull latching mechanism which clicks when fully inserted. The E-2000 Standard Pigtail is available for single mode and Multimode applications with Physical Contact (PC) end face. Angled Physical Contact (APC) 8 polish is also available. The series is compliant with European (EN 186270) and International (IEC 61754-15) standards.
The E-2000 Fiber Optic Patch Cords is manufactured by Reichle and De-Massari under license of Diamond SA, CH-6616, Losone, Switzerland.
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
FEATURES
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Excellent mechanical endurance
4. Good in repeatability
5. Good in exchange
6. Green Production, CE, RoHS Standard
Parameters
| Item | SingleMode | MultiMode |
| Insertion loss | ≤0.2dB | ≤0.3dB |
| Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
| Insert-pull test | 1000 times |
| Repeatability | ≤0.1 |
| Tensile strength | ≥10kg |
| Operating temperature | -40℃~ +85℃ |
| Ceramic ferrule spec | 125.5um concentricity deviations:≤1μm | 127um concentricity deviations:≤3μm |
| Suitable fiber | 9/125μm | 50/125μm, 62.5/125μm |
