MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

Brand Name : UNIFIBER-OEM

Certification : ROHS

Place of Origin : CHINA

MOQ : 100pcs

Payment Terms : T/T, Western Union

Price : Negotiable

Model Number : MTP MPO

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : PE bag or customized package & cartons

Color : Violet/Aqua/Yellow/Green

Fiber Count : 12

Connector type : MTP/MPO

Sleeve : Zirconia,PB

insertion loss : < 0.2DB

Durability : >1000 mating times

Contact Now

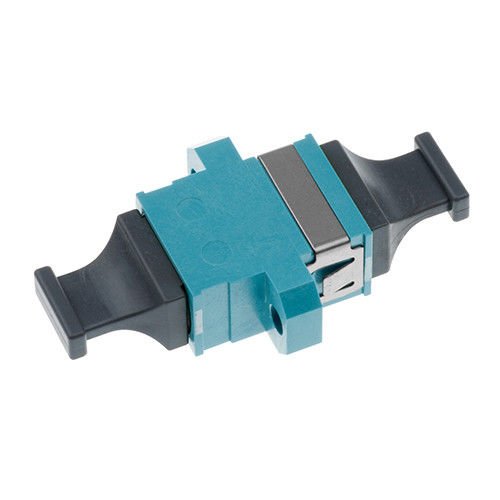

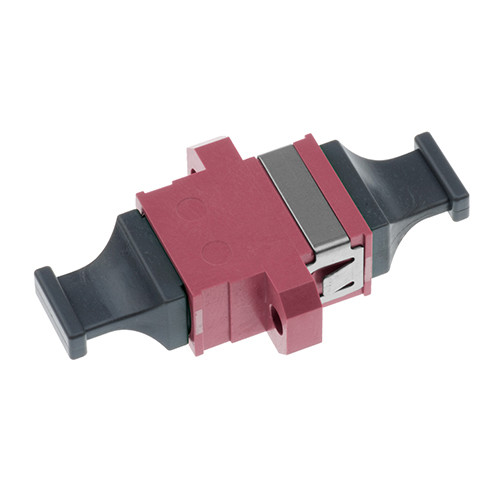

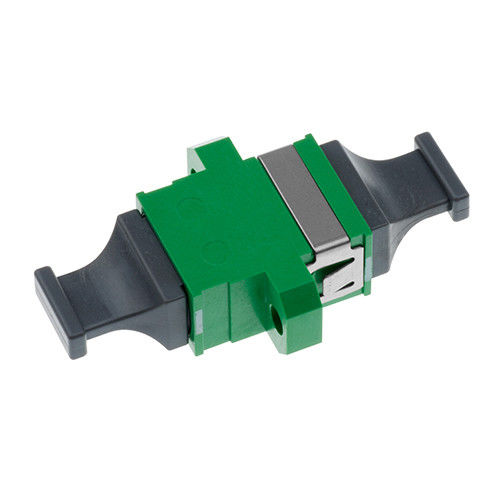

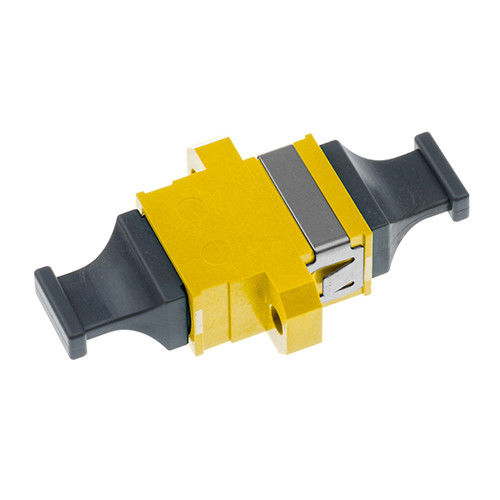

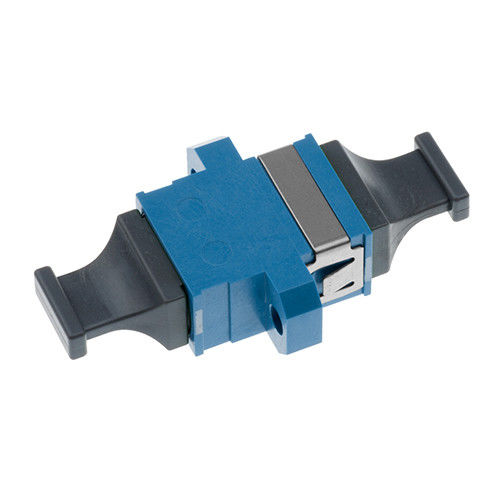

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

MPO Adapter is a small device used to connect fiber-optic cables with MPO connector,MTP is a high performance MPO connector engineered for better mechanical and optical performance.
MTP adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP style. It works for any MTP Connector from 4 fiber to 72 fiber, widely used in trunk cabling and casettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs.

Our MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.The adapter body material is polyetherimide with a stainless steel spring clip.



Features

Low insertion loss
High return loss
Ease of installation
Reliability
Low environmental sensitivity


Application:
Telecommunications networks;
Data processing networks;
Cable television;
Fiber-To-The-Home;

Premises distribution.



Item
Value
Insertion loss
≤0.2dB
Insert-pull test
1000 times
repeatability
≤0.1
Tensile strength
≥10kg
Operating temperature
-40°C~85°C
Sleeve materials
Zro2, Brass, or Nickel

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes



MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes
