Low PDL 3x3 Monolithic Fiber Optic Splitter Single Mode 1310nm

Name: Low PDL 3x3 Monolithic Fiber Optic Splitter Single Mode 1310nm
Brand: UNIFIBER-OEM
Price: 1 USD

Buy cheap Low PDL 3x3 Monolithic Fiber Optic Splitter Single Mode 1310nm product

Brand Name : UNIFIBER-OEM

Model Number : 3x3 Monolithic Single Mode Coupler

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Blister Case

Product : 3x3 Monolithic Single Mode Coupler

Wavelength : 1310nm & 1550nm

Splitting : 33.3%/33.3%/33.3%

Connector : None

Pigtail Type : 900um loose tube

Package : Steel tube

Contact Now

3×3 monolithic couplers have the compact package size, low insertion loss, and high reliability performance. These couplers were designed for optical modules, the fiber sensors and fiber testing instruments.

Features

Mini size
High isolation
Low PDL
Low excess loss
High stability and reliability

Application

FTTH & LAN
WDM systems

CATV Systems & Fiberoptic Sensors
Long-haul Telecommunications

Single Standard Couplers
Grade	P Grade	A Grade
Coupling Ratio(%)	50/50	50/50
Excess Loss (Typical)(dB)	0.07	0.1
Maximum lnsertion loss(dB)	3.4	3.5
Polarization Sensitivity (dB)	0.15	0.2
Operating Wavelength(nm)	1310,1480,1550 or custom wavelength

Single Wideband Couplers
Grade	P Grade	A Grade
Coupling Ratio(%)	50/50	50/50
Excess Loss (Typical)(dB)	0.07	0.1
Maximum lnsertion loss(dB)	3.4	3.6
Polarization Sensitivity (dB)	0.15	0.2
Operating Wavelength(nm)	1310±40,1550±40,or custom wavelength
Coupling Ratio(%)	1~50
Directivity (dB)	≥55
Operating Temperature(℃)	-20~+80
Storage Temperature(℃)	-40~+85
Fiber Type	Corning singlemode SMF-28,DS fiber or flexcore
Fiber Pigtail Length(m)	1
Port Configuration	1×2 or 2×2
Dimensions (mm)	Package D,E,F,G

Coupling Ratio	lnsertion Loss
	P Grade	A Grade
40/60	4.4/2.5	4.6/2.8
30/70	5.6/1.8	6.0/2.0
20/80	7.4/1.1	7.7/1.3
10/90	10.8/0.6	11.6/0.8
5/95	14.2/0.4	14.6/0.5
2/98	18.5/0.2	19.0/0.3
1/99	21.0/0.2	21.5/0.3

Low PDL 3x3 Monolithic Fiber Optic Splitter Single Mode 1310nm

Product Tags:

Low PDL Fiber Optic Splitter

3x3 Monolithic Fiber Optic Splitter

1310nm Fiber Optic Coupler Splitter

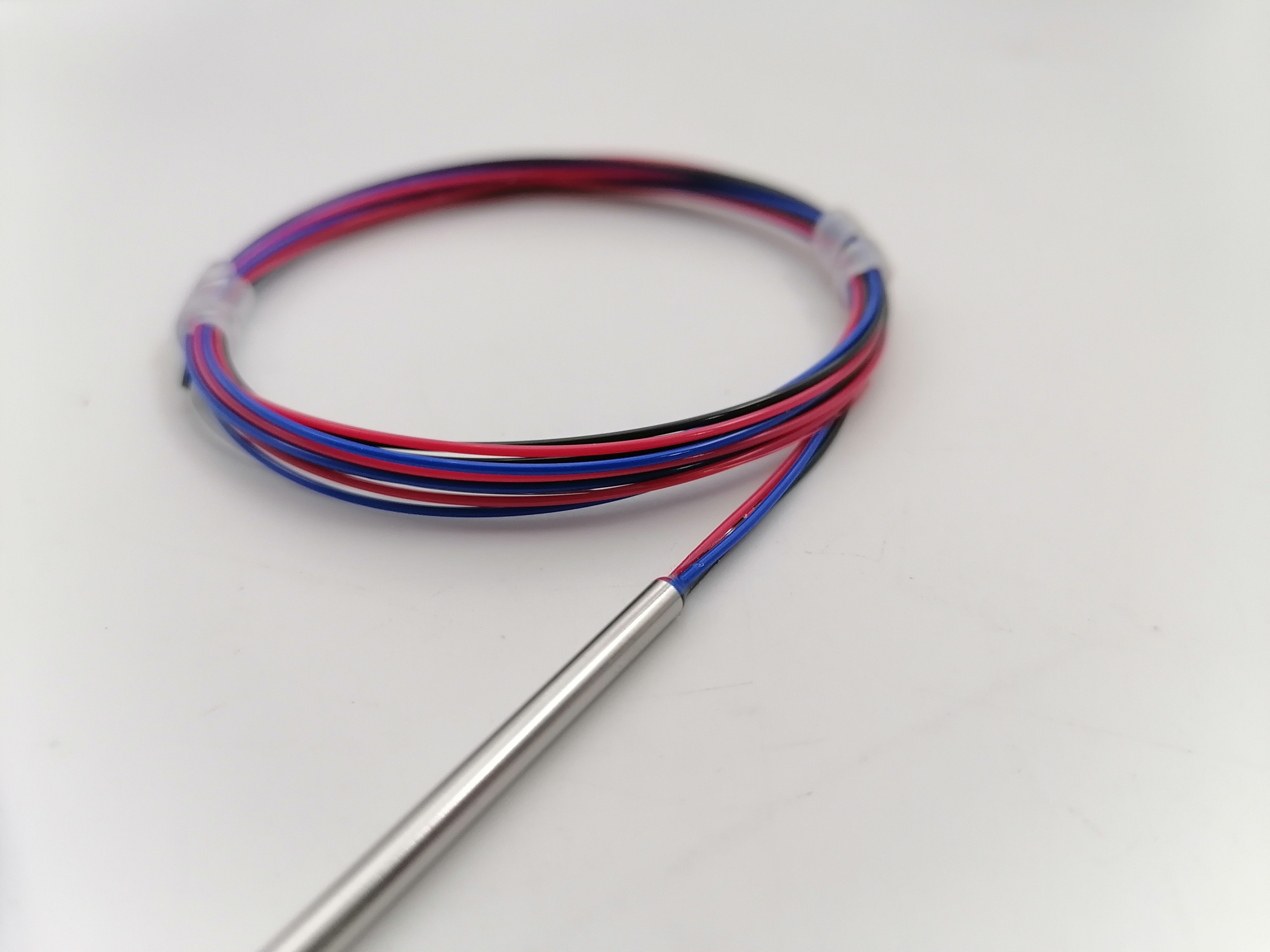

Low PDL 3x3 Monolithic Fiber Optic Splitter Single Mode 1310nm Images
