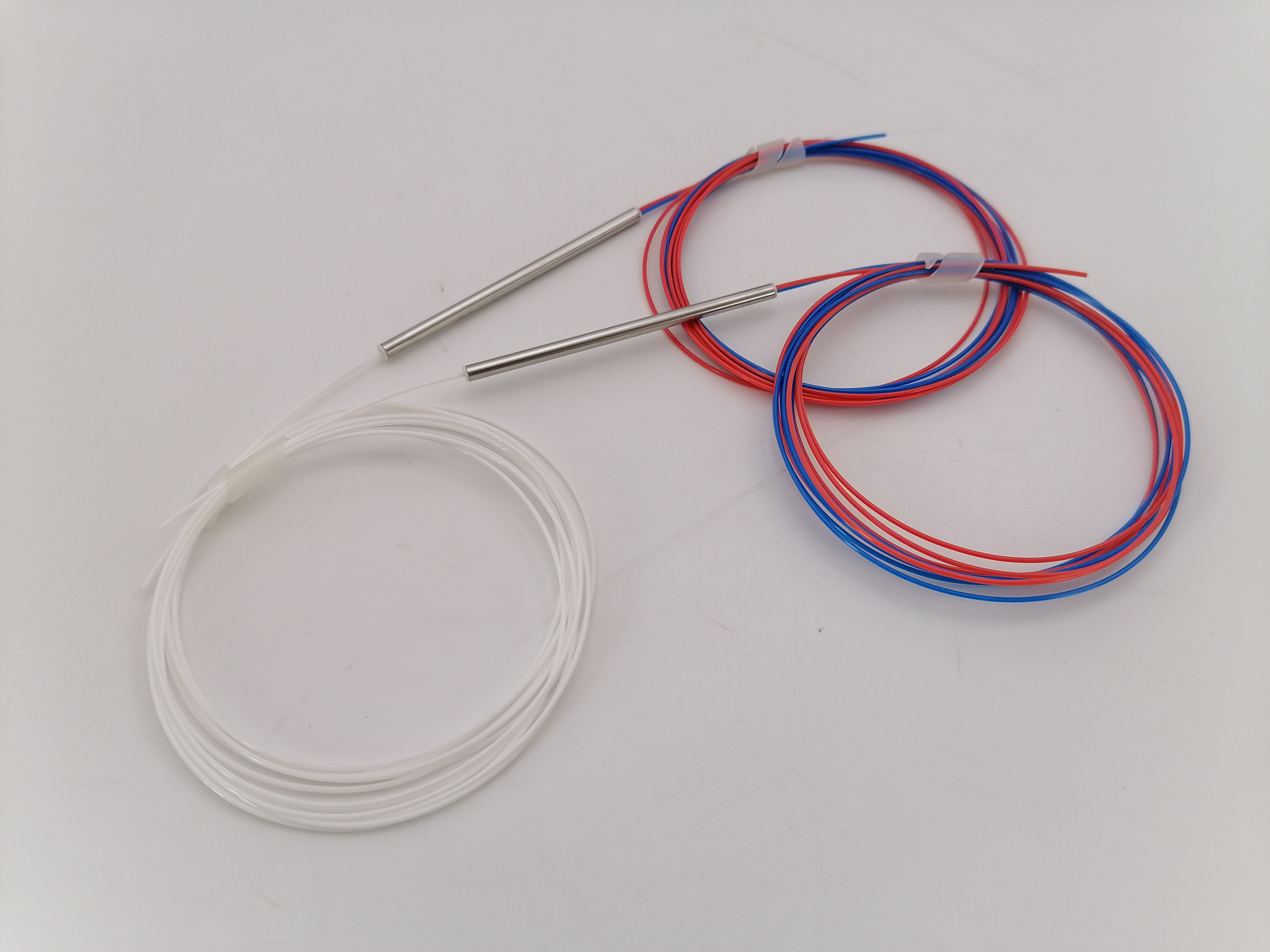

1550nm Steel Tube 5/95 Splitting Optical Coupler CATV Links

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : Splitting Optical Coupler

Certification : ROHS

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Blister Case

Product : Splitting Optical Coupler

Pigtail Type : 250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm

Splitting Ratio : 5/95/10/90...or others

Packages : 3.0*60mm Steel Tube

Connector : SC/LC or None

Steel tube Size : Standard Size or Mini Size

Grade : P Grade Or A Grade

Contact Now

Single Mode 1310/1550nm FBT Splitting Optical Coupler is used for splitting or combining optical signals. The splitting or coupling ratio is controlled and can be modified upon costumer request as well as the amount of splitting ports. The FBT coupler supports dicrete wavelength window.



Features
Low insertion loss
High channel isolation

Excellent environmental reliability

Low PDL


Application
CATV Links
FTTX Systems

PON Networks​
Optical Signal Distribution



Specification

Parameters Unit Specifications
Split Ratio % 50:50 40:60 30:70 20:80 10:90
Insertion Loss dB 4.0/4.0 5.0/3.3 6.5/2.6 8.0/1.9 11.0/1.3
Central Wavelength nm 85,013,101,550
Directivity dB ≥40
Return Loss dB ≥40
Maximum Power Handing mW 500
Operating Temperature °C 0~70
Storage Temperature °C -40~85
Packge Dimension SB:(φ)3.0×(L)54 for bare fiber
SL:(φ)3.0×(L)60 for 900um loose tube
CB:(φ)3.0×(L)40 for bare fiber
CL:(φ)3.0×(L)46 for 900u loose tube
