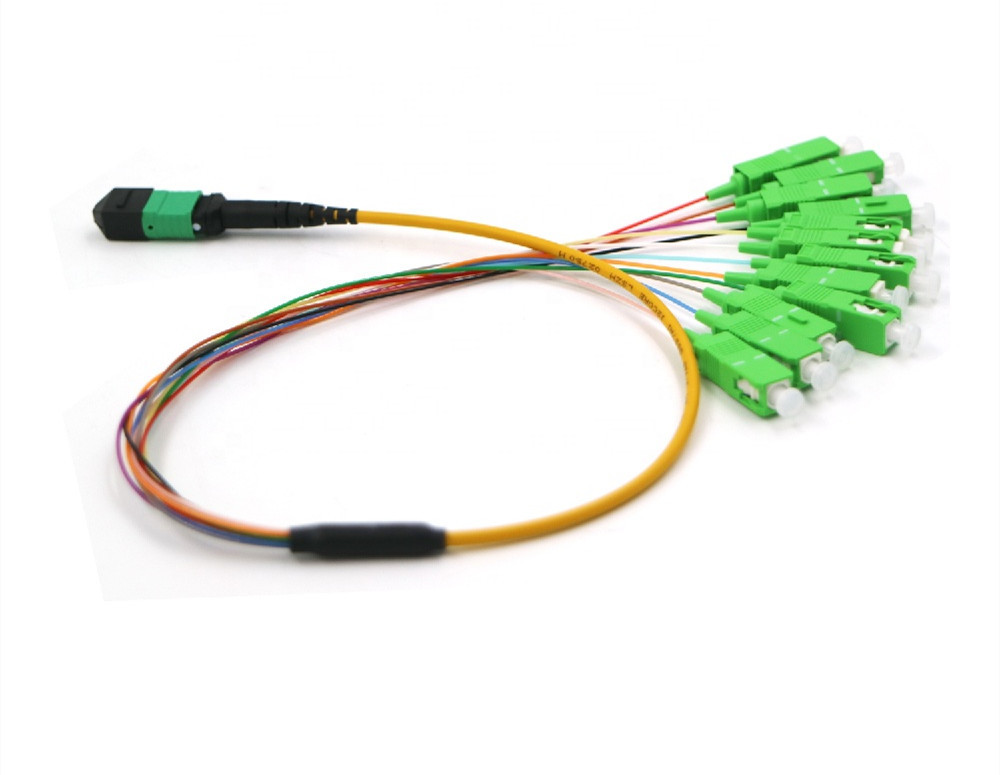

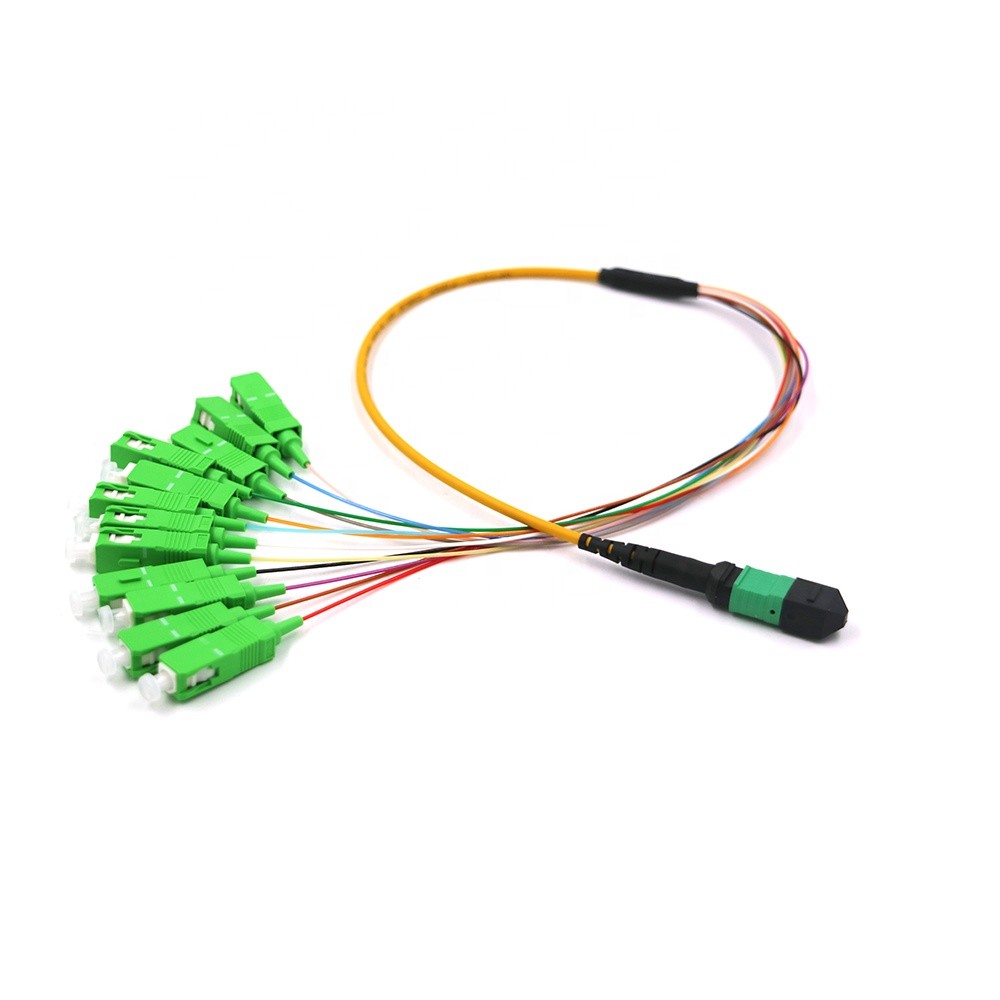

Elite MTP/MPO to SC/apc 12 core single mode patch cord with 0.9mm fan-out for cassette module
The MPO/MTP breakout fan-out patch cord is a multi-fiber jumpers which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel.
FEATURES
Fiber count available in 8, 12, 24
MTP/MPO connector type available in Male, Female
Insertion loss type available in Standard, Elite / Low Loss
Fanout length available in 0.5m, 1m, etc.
Cable jacket type available in OFNR, LSZH, OFNP
Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
Applications:
High Density Cabling Solution
MPO/MTP cassette
Telecom system
Data Center
Parameters
| MPO/MTP Termination |
| Type | Single mode(APC polish) | Multi mode(PC polish) |
| Fiber count | 8,12,24,etc. | 8,12,24,etc. |
| Fiber type | G652D,G657A1 etc. | OM1,OM2,OM3,OM4 etc. |
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75dB | ≤0.35dB | ≤0.75dB | ≤0.35dB |
| Return Loss | ≥55dB | N/A |
| Working Temperature | -40℃～80℃ | -40℃～80℃ |
| Test Wavelength | 1310nm | 850nm |
| Generic Connector Termination |
| Type | Single mode | Multimode |
| UPC | APC | PC |
| Max,Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Typical Insertion Loss | 0.2dB | 0.2dB | 0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥25dB |
| Working Temperature | -40℃～80℃ |
| Test Wavelength | 1310nm | 850nm |
| All MM SM shall be tested for IL |
