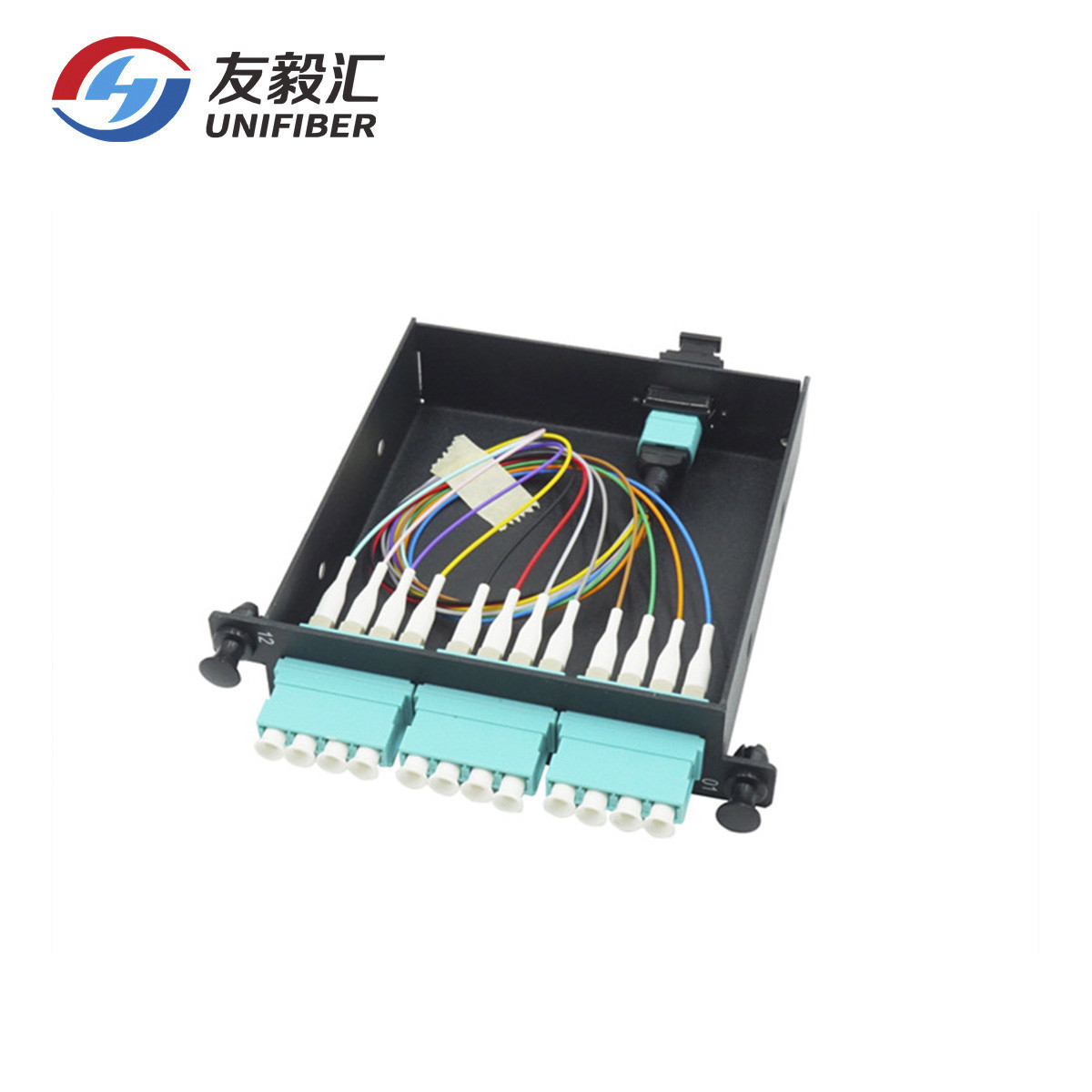

Mpo To Lc 10G OM3 50/125um LGX Footprint Fiber Patch Panel

Brand Name : UNIFIBER

Model Number : 24 fiber mpo to lc cassette module

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 5~7business days

Packaging Details : Individual carton box

Material : SPCC(cold rolled steel sheet)

Operating temperature : -20°C~+55°C

(front)Adapter type : LC-HL-DX ×6Pcs,LC- QT ×6Pcs,SC- DX ×6Pcs

(front)Adapter color : Aqua: OM3/OM4 ; Blue: SM-UPC ; Green: SM-APC

(rear)Adapter type : 2Pcs MPO/MTP(Full flange/Opposed)

(rear)Adapter color : Black

Connector A : SM :LC-UPC,0.9mm or LC-APC,0.9mm MM:LC-UPC,0.9mm

Connector B : SM : MPO/MTP(male)-APC MM: MPO/MTP(male)-PC

Polarity : TypeA

L×W×H(mm) : 129×141.5×30mm

Painting Finish : powder coat matt finish

Painting Color : 9005: RAL black

Fiber Mode : G657A1; OM1; OM2; OM3; OM4

Product : 24 fiber mpo to lc cassette module

Contact Now

24 fiber mpo to lc cassette module, multimode 10G OM3 50/125um, LGX Footprint, Type A, 24 LC Ports
Pre-assembled MPO MTP modules improve the speed of installation. Modules with external MPO/MTP ports can be easily and efficiently connected to trunks or patchleads. Single MPO/MTP mating action provides instant connection for 24 fibres at the time. UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;



Feature

Standard and Elite low loss MPO/ MTP connectors,
SM and MM (OM3/OM4) Versions.

Can be installed 24 or 12 (LC) fibres,12 SC fibers in LGX module.

24 Fibre ferrule MPO/MTP interface.
Premium LC Low Loss terminations.



Aplication

Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
InfiniBand
Emerging 40 and 100Gbps Protocols



Specification:

Connector Type
12-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish
PC(MM); APC(SM)
Housing Colour
MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)
≤ 0.10 dB
Insertion loss, max. (MTP/MPO)
≤ 0.3 dB
Return loss (MTP/MPO SM)
PC >55dB; APC> 60dB
Insertion Loss, Typical (LC/SC)
≤ 0.10 dB
Insertion loss, max. (LC/SC)
≤ 0.3 dB
Return loss (LC/SC SM)
PC >55dB; APC> 65dB
Durability(500 Matings)
< 0.2dB

.Mpo To Lc 10G OM3 50/125um LGX Footprint Fiber Patch Panel
