1270~1610nm LC/UPC 0.5m Wavelength Division Multiplexing

Name: 12701610nm LCUPC 05m Wavelength Division Multiplexing
Brand: UNIFIBER-OEM
Price: 1 USD

Buy cheap 1270~1610nm LC/UPC 0.5m Wavelength Division Multiplexing product

Brand Name : UNIFIBER-OEM

Model Number : CCWDM

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 5~7 Business days

Packaging Details : Carton Box

Operating Wavelength : 1270nm-1610nm

Logo : Can be customized

Package : ABS Box

Connector : LC/UPC

Fiber type : G657A1 0.9mm pigtails

Application : PON network/CATV

Contact Now

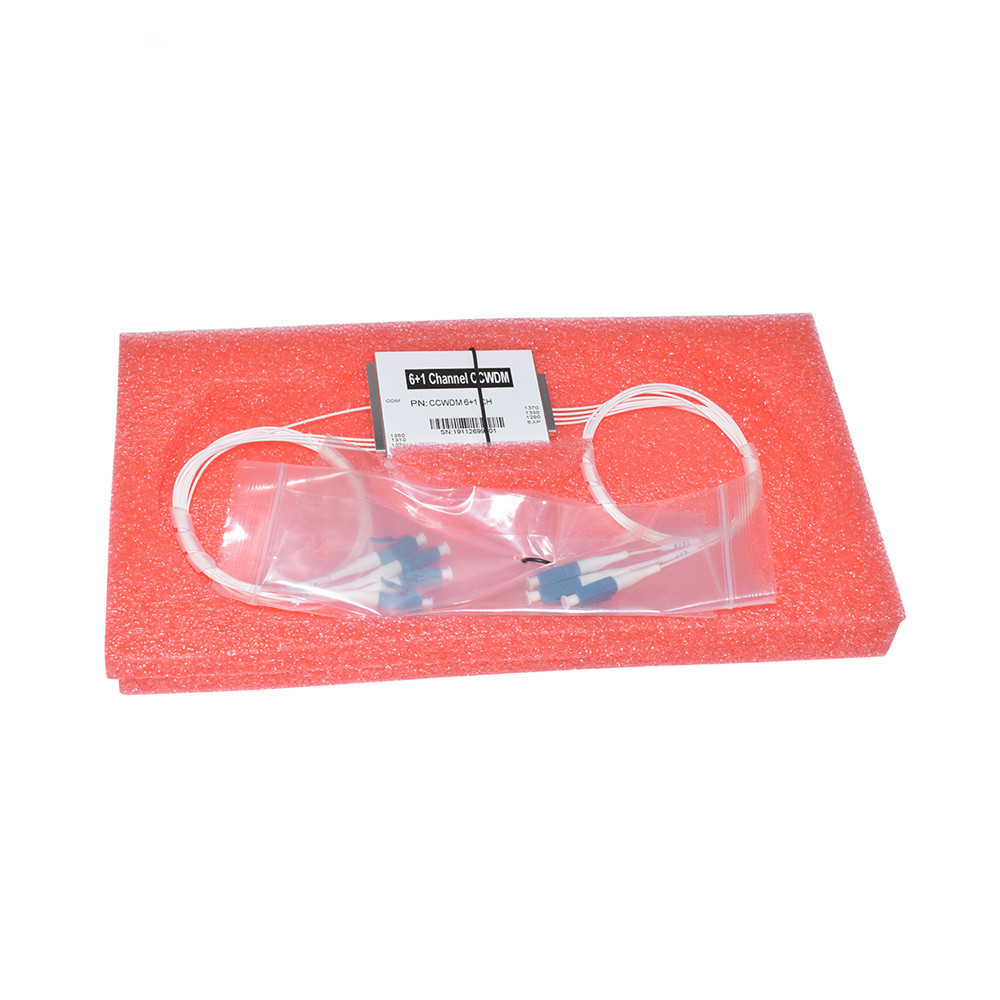

6+1CH mini Compact Coarse Wavelength Division Multiplexing (CCWDM) 1270~1610nm LC/UPC 0.5m

Compact Coarse Wavelength Division Multiplexing (CCWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving device

Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design, Mini size
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability

Applications
CWDM System
PON Networks
CATV Links

Parameters:

Description		Unit	Min	Typical		Max.
Optional channel loss		dB		0.8		1.0
Pass band width		nm	13
Flatness		dB		0.3		0.5
Adjacent channel isolation		dB	30	35
Non adjacent channel isolation		dB	40	45
Directivity		dB	55
PDL		dB				0.2
PMD		ps				0.2
Max. power		mw	300
Pass channel insertion loss	P	dB	0.8		1.0
	A		1.0		1.5
Channel wavelength		nm	1471 1491 1511 1531 1551 1571 1591 1611 Can be selected on request or any channel between 1260-1625
Operating temperature		°C	0 ~+70
Storage temperature		°C	-40 ~+85
Package		mm	43(L)X28(W)X6(H) or customerized

1270~1610nm LC/UPC 0.5m Wavelength Division Multiplexing

Product Tags:

CCWDM Multiplexer

CCWDM Module

1270~1610nm LC/UPC 0.5m Wavelength Division Multiplexing Images
