Data Center AWG30 40Gbps DAC Passive Copper Cable

Name: Data Center AWG30 40Gbps DAC Passive Copper Cable
Brand: UNIFIBER-OEM
Price: 1 USD

Buy cheap Data Center AWG30 40Gbps DAC Passive Copper Cable product

Brand Name : UNIFIBER-OEM

Model Number : 40G QSFP+ to QSFP+

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PP bag

Data Rate : 40Gbps

Wire AWG : 30AWG

Length : 1m 2m 3m 4m 5m

Connectors : QSFP+ to QSFP+

Compatible : Cisco HP Juniper etc

Package : PP Bag

Color : Black

Application : Data center

Contact Now

40G QSFP+ to QSFP+ DAC AWG30 Passive Copper cable 1~5m

40G QSFP+ Passive Copper Cbales are customized for an ultra-high performance, cost effective cable solution in 40-Gigabit speed applications including switched fabric I/O, switches, routers, data storage arrays, and high performance computer (HPC) clusters.

Feature
QSFP+ conforms to the Small Form Factor SFF-8436
4-Channel Full-Duplex Passive Copper Cable Transceiver
Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Copper link length up to 5m (passive limiting)
High-Density QSFP 38-PIN Connector
Power Supply :+3.3V
Low power consumption: 0.02 W (typ.)
I2C based two-wire serial interface for EEPROM signature which can be customized
Temperature Range: 0~ 70 °C

Applications
10 Gigabit Ethernet 4
40 Gigabit Ethernet
InfiniBand4x SDR, DDR, QDR
2, 4, 8, 10 Gigabit Fiber Channel
Fiber Channel over Ethernet SAS,Servers,Hubs,Switches,Routers
SFP+ DAC, 40G DAC, DAC Cable

Compatibility brand

Cisco,HP,Juniper,Finisar,D-Link,Alcatel,etc

Application

Telecommunication

Power Supply

+3.3V

Operating Temperature

0 ℃ to 70 ℃

Wire Gauge

30AWG

Conductor Material

Copper

Data Rate

40G

Data Center AWG30 40Gbps DAC Passive Copper Cable

Product Tags:

40Gbps DAC Copper Cable

AWG30 DAC Cable

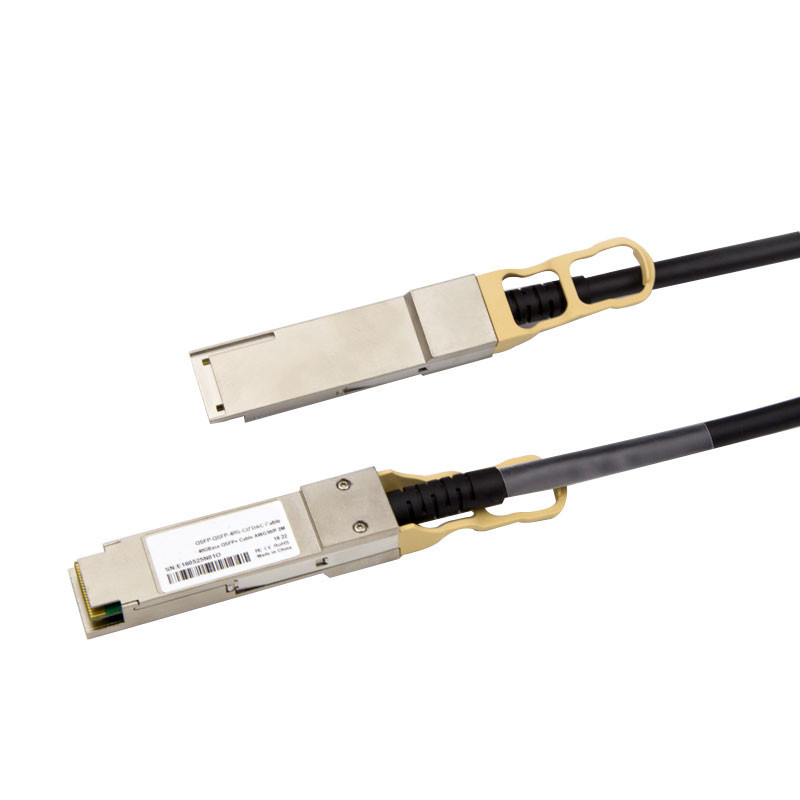

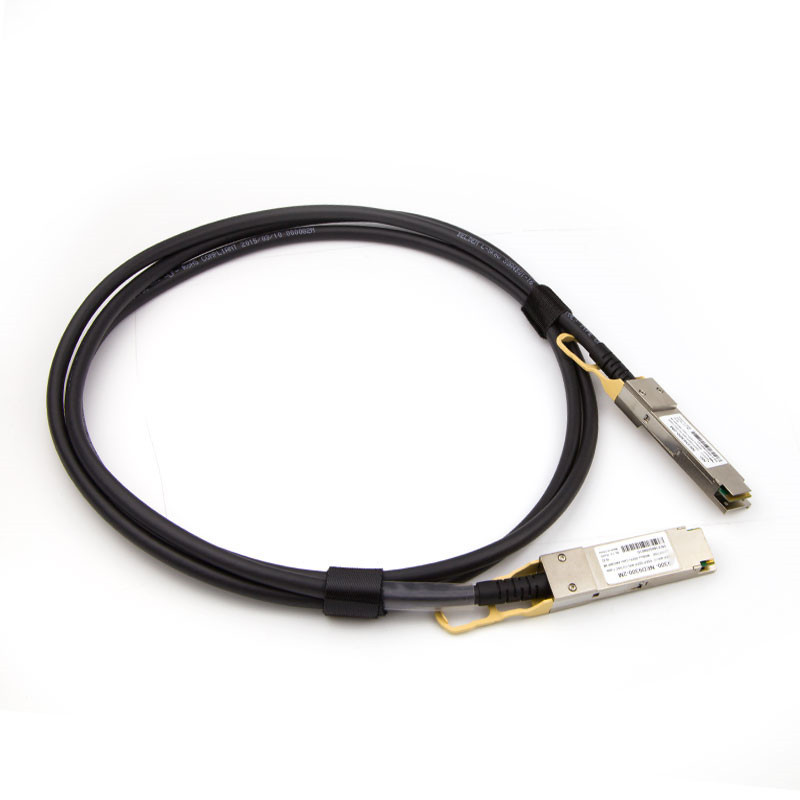

Data Center AWG30 40Gbps DAC Passive Copper Cable Images
