ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter

Name: ABS Box SCAPC G657A1 Singlemode PLC Fiber Optic Splitter
Brand: UNIFIBER
Price: 1 USD

Buy cheap ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter product

Brand Name : UNIFIBER

Model Number : 4WPLCSCA

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5~8 business days

Packaging Details : Individual blister Case or Carton Box

Package Style : ABS box,Mini Steel Tube,LGX Cassette

Configuration Type : 1x2,1x4,1x8,1x16,1x32,1x64

Connector : SC,LC,FC,ST or Customzied

Pigtail Length : Customized

FIber type : G657A1

Wavelength : 1260~1650nm

Contact Now

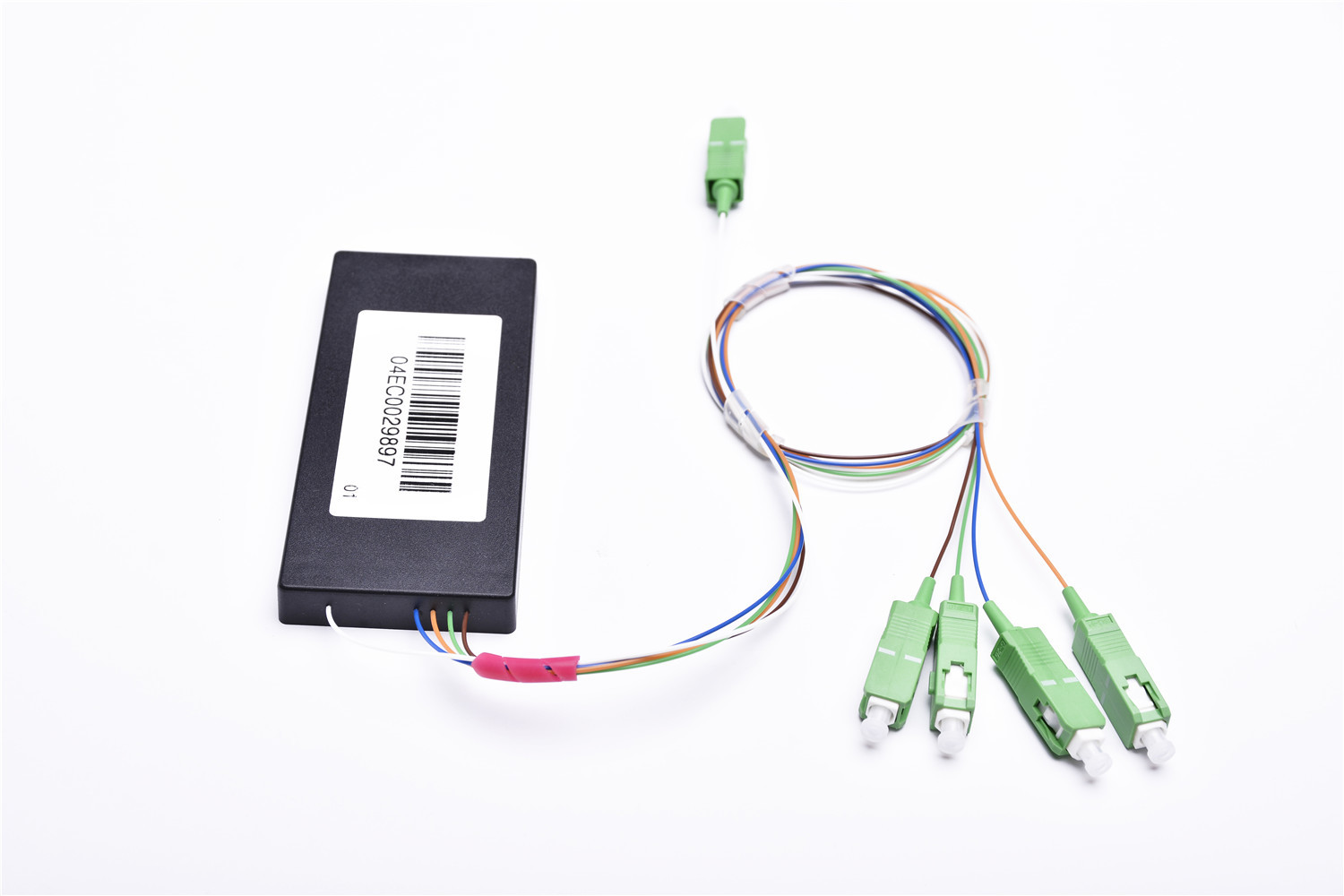

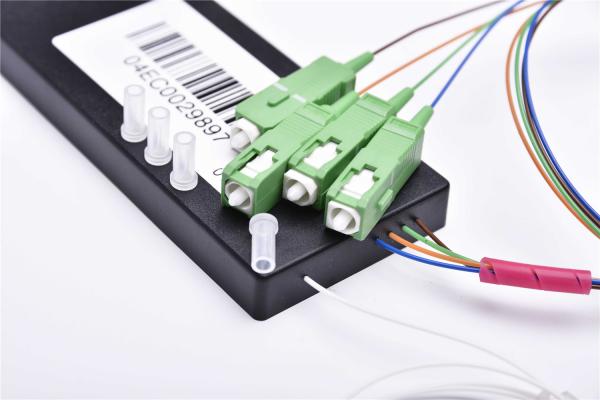

1x4 optical splitter PLC compact mini ABS box singlemode SC/APC with bend insensitive fiber(BIF) G657A1

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

FEATURES

Excellent Environmental Stability
Excellent Mechanical

Low Polarization Dependent Loss

Good uniformity and low insertion loss

APPLICATION

FTTX Systems
CATV

GEPON Networks

Optical Signal Distribution

Specification

Type		1x2	1x4	1x8	1x16	1x32	1x64
Operating wavelength(nm)		1260-1650
Insertion loss (dB)	Typical	3.6	7.2	10.5	13.5	17	19.5
Insertion loss (dB)	Maximum	4	7.5	11	14	17.2	21
Uniformity (dB)	Typical	0.4	0.5	0.6	1	1	2
Uniformity (dB)	Maximum	0.6	0.6	0.8	1.2	1.5	2.5
Polarization Dependent Loss (dB)	Typical	0.1	0.1	0.15	0.2	0.2	0.2
Polarization Dependent Loss (dB)	Maximum	0.15	0.15	0.25	0.3	0.3	0.3
Wavelength dependent loss (dB)	Typical	0.1	0.1	0.15	0.3	0.3	0.3
Wavelength dependent loss (dB)	Maximum	0.2	0.3	0.3	0.5	0.5	0.5
