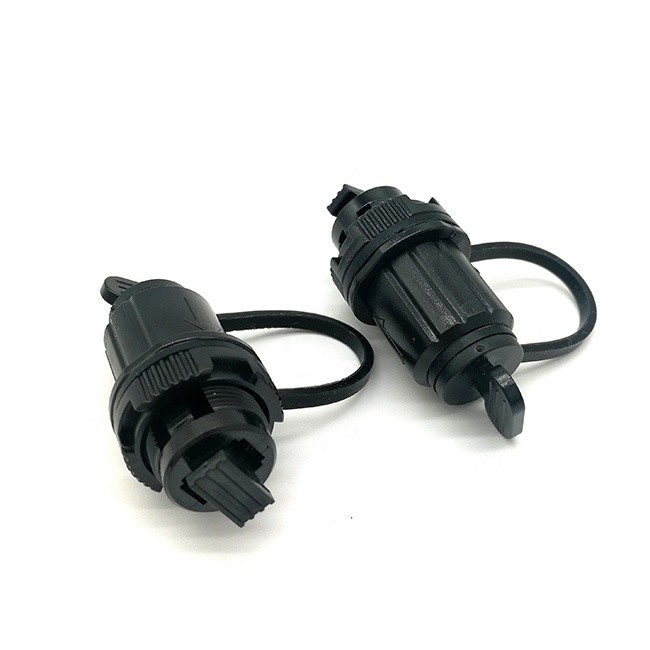

FTTH FTTA Outdoor Waterproof Rugged Huawei Mini Sc Adapter For Caja Nap Box,Black/red/green color for options
This optical adapter MSC is compatible with HUAWEI MINI SC connectors, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter. Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.
Features:
Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use with NAP box, enclosure boxes.
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
Can be installs without special tooling
Faster network roll out and customer installations
100% tested assemblies built in a controlled environment
Lower cost deployment by utilizing plug and play solutions
Custom built solutions with quick turn around times
Specification:
IP-67 water and dust protection
-40ºC~85ºC operating temperature
445N (100 lbs) cable retention
Black color, red color, green colors for option
Low profile in-line receptacle available
No installation tools requires
100 minimum mating cycles
Application :
Telecom networks 5G tower;
CATV, LAN&WAN.
Broadband;
CPRI, FTTP, FTTA
Product Tags:
|
|

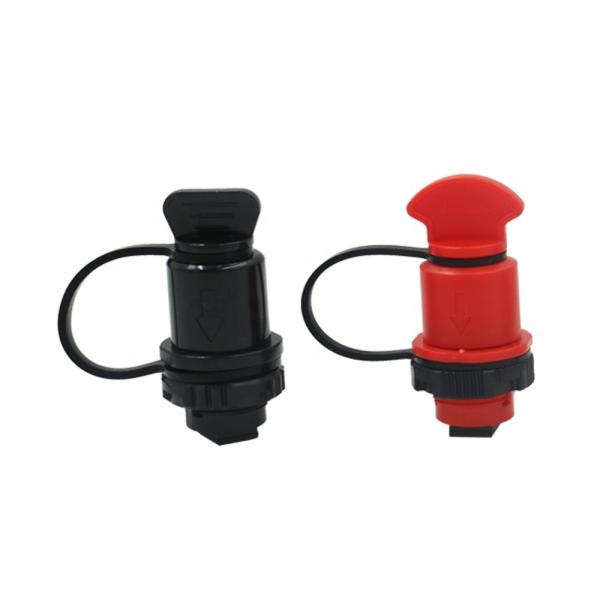

Outdoor waterproof Mini SC reinforced fiber optic adapter Images
|
