FC/APC FC/UPC Mechanical 200mW Fiber Optic Attenuator

Name: FCAPC FCUPC Mechanical 200mW Fiber Optic Attenuator
Brand: UNIFIBER-OEM
Price: 1 USD

Buy cheap FC/APC FC/UPC Mechanical 200mW Fiber Optic Attenuator product

Brand Name : UNIFIBER-OEM

Model Number : UNFOAFC

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Operation Wavelength : 1260~1650nm

Connnector : FC/UPC FC/APC

Attenuation : 0~30dB

Type : Variable Optic Attenuator

Contact Now

FC/APC FC/UPC mechanical variable adjustable attenuator wide attenuation range 1dB to 30dB

With the excellent characteristics, FC Variable Fiber Optic Attenuators can be used in fiber optical telecommunication system and optical transmission system. These attenuators can be applied in FTTH, CATV, WAN, fiber optical sensor and metropolitan area network. They are often used as the testing equipment.

Application:

Optical transmission system
FTTH, CATV, WAN, fiber optical sensor

Fiber optical telecommunication system
Metropolitan area network.

Features:

Perfect environmental stability and reliability
High-power light source durability
High precise attenuation value from 1~30dB
Low insertion loss and high return loss

Operation wavelength	SM: 1200 to 1600nm or 1310/1550nm
Operation wavelength	MM: 850nm, 1300nm
Return Loss	≥ 50 db (PC)
	≥ 55 db (UPC)
	≥ 65 db (APC)
Attenuation Accuracy	+/-0.5 db for 1 to 5db attenuation
Attenuation Accuracy	+/-10% for 6 to 30db attenuation
Polarization Dependent loss	≤ 0.2db
Maximum optical Input power	200mW
Operating Temp Range	-40 to + 80 degree

FC/APC FC/UPC Mechanical 200mW Fiber Optic Attenuator

Product Tags:

200mw fibre optic attenuator

850nm voltage variable attenuator

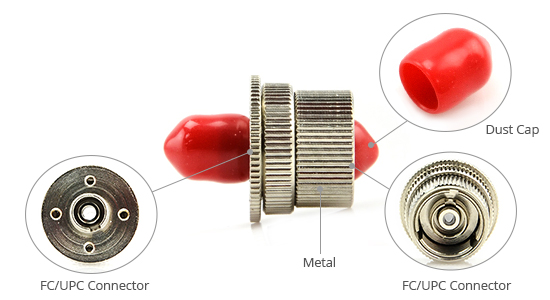

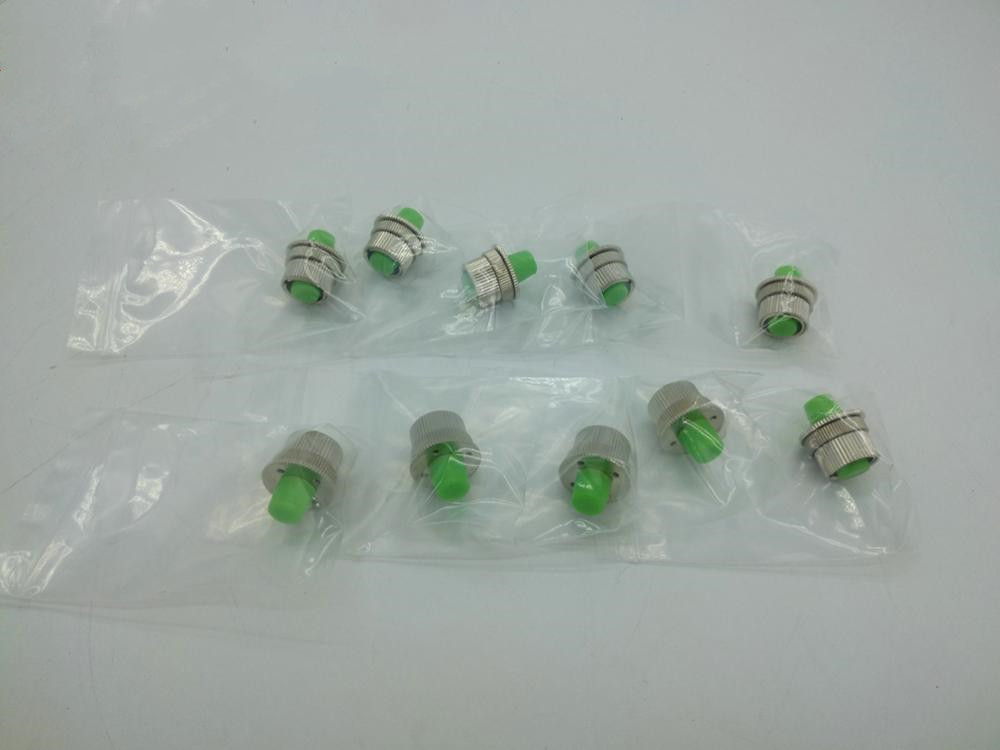

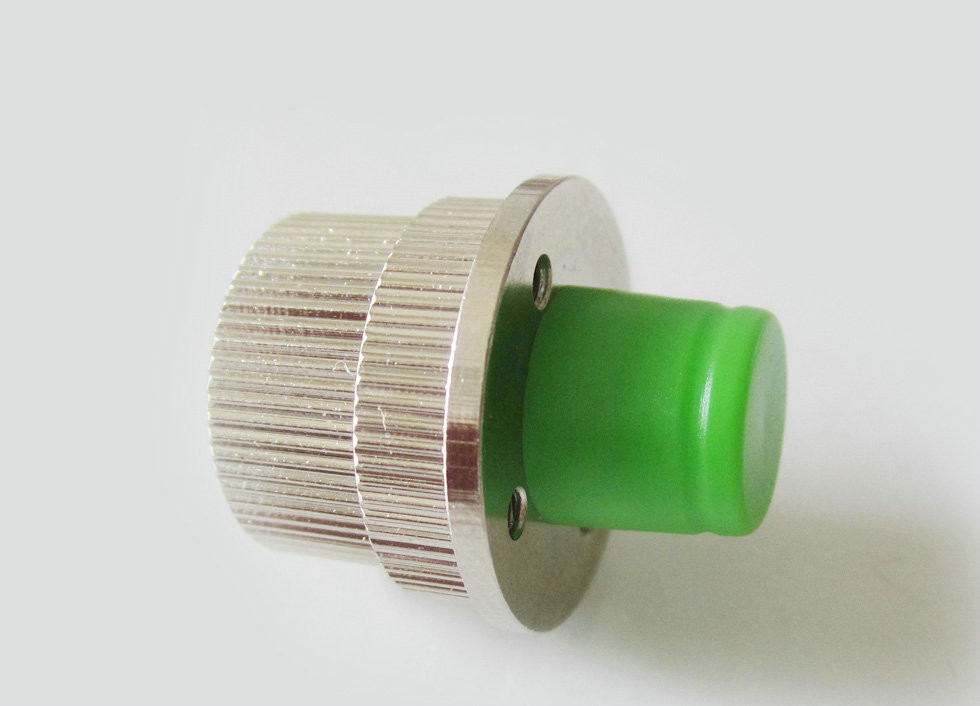

FC/APC FC/UPC Mechanical 200mW Fiber Optic Attenuator Images
