Rugged FULLAXS To LC Fiber Optic Assembly Duplex Single Mode OS2 G657A2 GYFJH 4.8mm LSZH

Rugged FULLAXS To LC duplex single mode OS2 G657A2 GYFJH 4.8mm LSZH, outdoor IP68 rated FULLAXS LC-LC/DPX patch cord

The FullAXS connector system meet next generation WIMAX and Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection these cable assemblies need to plug directly into the optical transceivers though a bulkhead construction. For this specific application the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore the connector shell needs to allow for easy one handed mating.  users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.

Application:
WiMAX and LTE Base Stations
Robotics
Aerospace & Defense

Remote Radio Heads (RRH)
Industrial outdoor applications

Feature:

Water proof, dust proof and corrosion resistant

Open bulkhead for easy access to SFP

Duplex LC interface

Multimode and singlemode

Positive feedback to operator when fully mated
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Field installable version available

Specifications

fiber optic cable assembly

waterproof cable assembly

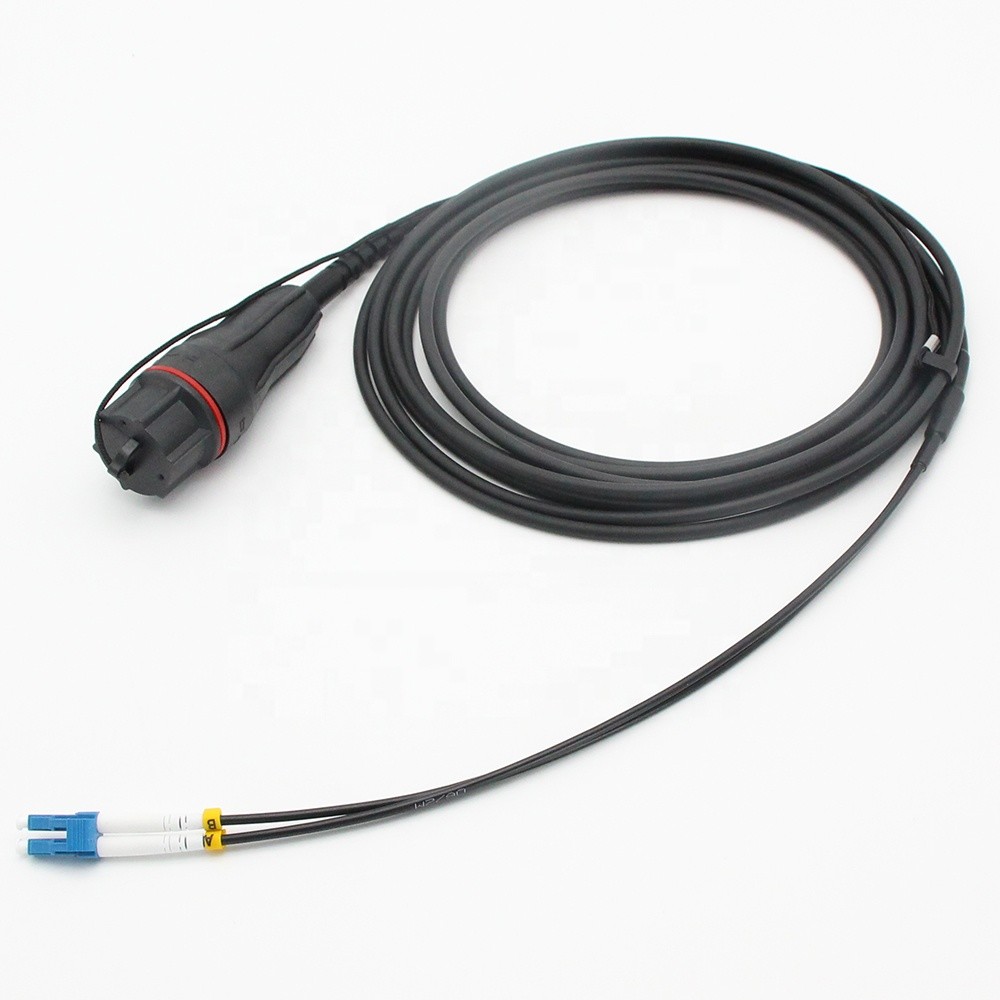

Rugged FULLAXS To LC Fiber Optic Assembly Duplex Single Mode OS2 G657A2 GYFJH 4.8mm LSZH Images
