FTTA Fullaxs Fiber Optic Patch Cable Assemblies 4.8mm LSZH Outdoor IP68 Waterproof

FTTA Fullaxs fiber optic patch cable assemblies 4.8mm LSZH, outdoor IP68 waterproof fullaxs connectors

Next generation WIMAX and Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection these cable assemblies need to plug directly into the optical transceivers though a bulkhead construction. For this specific application the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore the connector shell needs to allow for easy one handed mating. The FullAXS connector system meets this requirement by allowing for a large Z-direction tolerance while also offering the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.

Feature:

Duplex LC interface

Multimode and singlemode
Water proof, dust proof and corrosion resistant

Open bulkhead for easy access to SFP
Positive feedback to operator when fully mated
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Cost effective glass-filled polymer or metal die casted bulkhead
Field installable version available

Application:
Remote Radio Heads (RRH)
Industrial outdoor applications

WiMAX and LTE Base Stations
Robotics
Aerospace & Defense

Specifications

fiber optic cable assembly

waterproof cable assembly

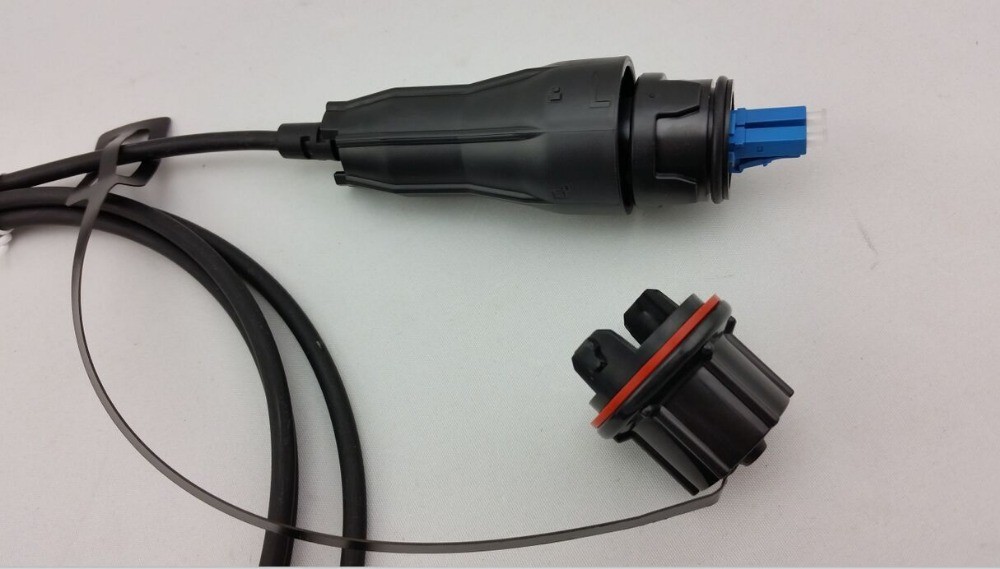

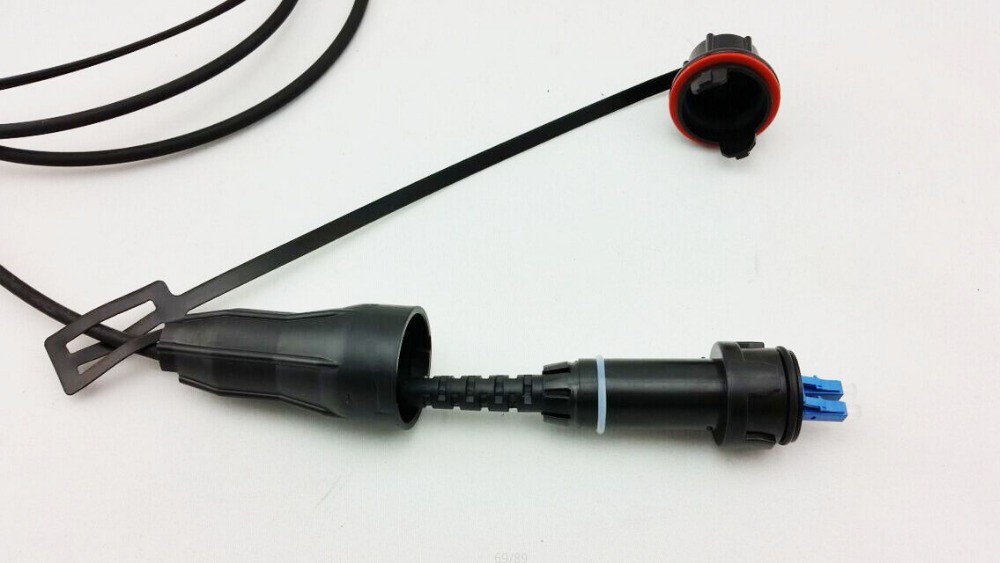

FTTA Fullaxs Fiber Optic Patch Cable Assemblies 4.8mm LSZH Outdoor IP68 Waterproof Images
