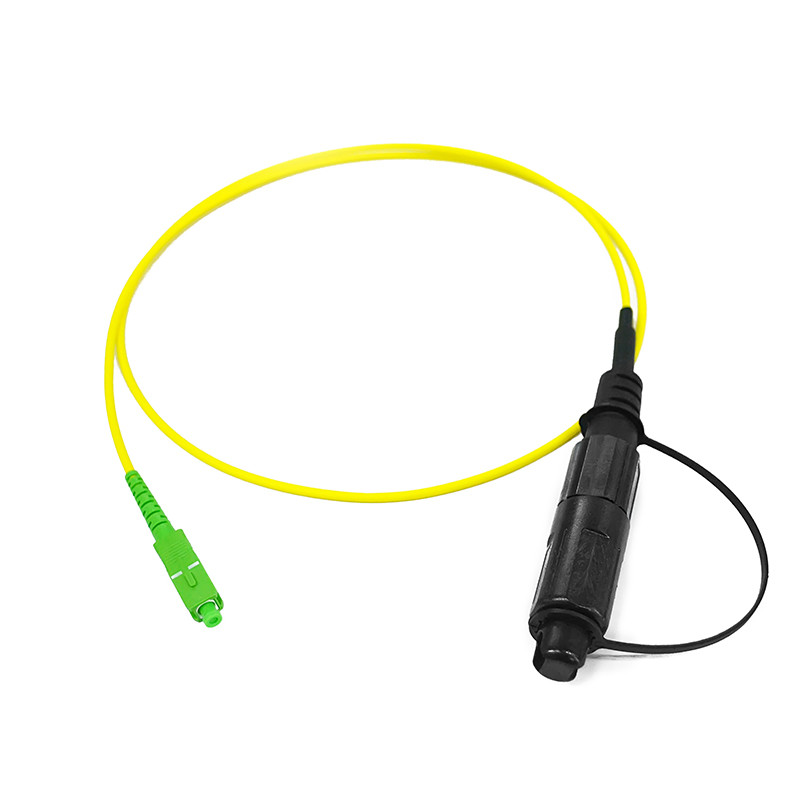

Pre Terminated Simplex Fiber Optic Patch Cable Corning Optitap Mini SC APC To SC/APC

Brand Name : UNIFIBER-OEM

Model Number : MINI SC

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : PE bag

Cable diameter : 3.0mm/4.8mm/7.0mm

Cable jacket : LSZH,PE,TPU,UV resistance

Cable length : 1/3/5/10m Or Customized

Fiber count : Single fiber

Fiber : G657A

Connectors : mini SC/APC

Contact Now

Corning optitap mini SC APC to SC/APC simplex fiber optic patch cable, factory pre terminated IP68 waterproof patch cord

Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.





Feature
IP-68 water and dust protection;
Factory terminated for high performance;
-40ºC~85ºC operating temperature;
445N (100 lbs) cable retention;
Accepts 2.0mm to 7.0mm cable diameters;
Low profile in-line receptacle available;
No installation tools requires;
100 minimum mating cycles.

Application
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
Suitable for FTTA and outdoor temperature extremes;
Ensures functionality in harsh weather environments ;
Can be installs without special tooling;
Threaded style coupling ;

Provides bend protection for installation and long term use.



Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃


Pre Terminated Simplex Fiber Optic Patch Cable Corning Optitap Mini SC APC To SC/APCPre Terminated Simplex Fiber Optic Patch Cable Corning Optitap Mini SC APC To SC/APC
