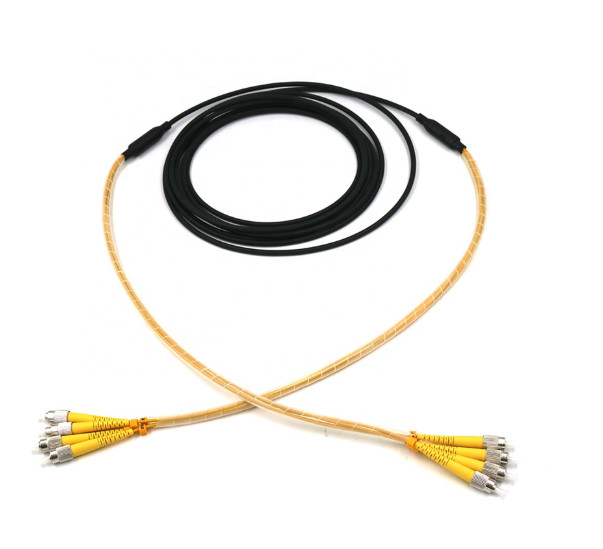

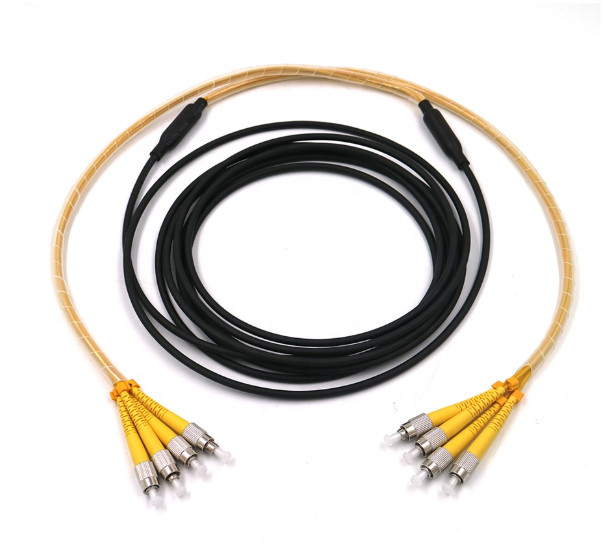

E jacketed Outdoor pre terminated cable 4 core FC/UPC-FC/UPC with 3.0mm break-out legs 0.5m
Fiber multi strand assemblies are preterminated in factory and 100% tested with test results, length can be at customized length, it can be coiled on the reel for flexible work,Pulling eye can be positioned to provide protection.Fiber optic trunk assemblie or multi strand assemblies are consisted of indoor fibers, it can be singlemode 9/125 or mutlimode 62.5/125um or 50/125um(OM2,OM3, OM4) fibers with various connectors.
Features
4-48 core 0.9, 2.0, 3.0 break-out leg available
Quick & easy installation without special skills, reducing installation time.
Protect the connectors and prevent the cable from twisting during the pull.
Various connectors are available - LC/SC/FC/ST
Low insertion loss and high reflection loss
Applications
Data processing networks;
Premise installation;
Wide Area Networks;
CATV;
Active device termination;
Telecommunication networks;
Local Area Networks;
Specifications
| Items | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
| Insertion Loss | <0.2dB | <0.3dB |
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
| Durability | <0.1dB typical change,
500 matings |
| Operating Temperature | -40 to +75 | -40 to +75 |
| Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um |
| 125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um |
| 125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um |
| 126.0+1/-0um, Conentricity:≤1um | |
