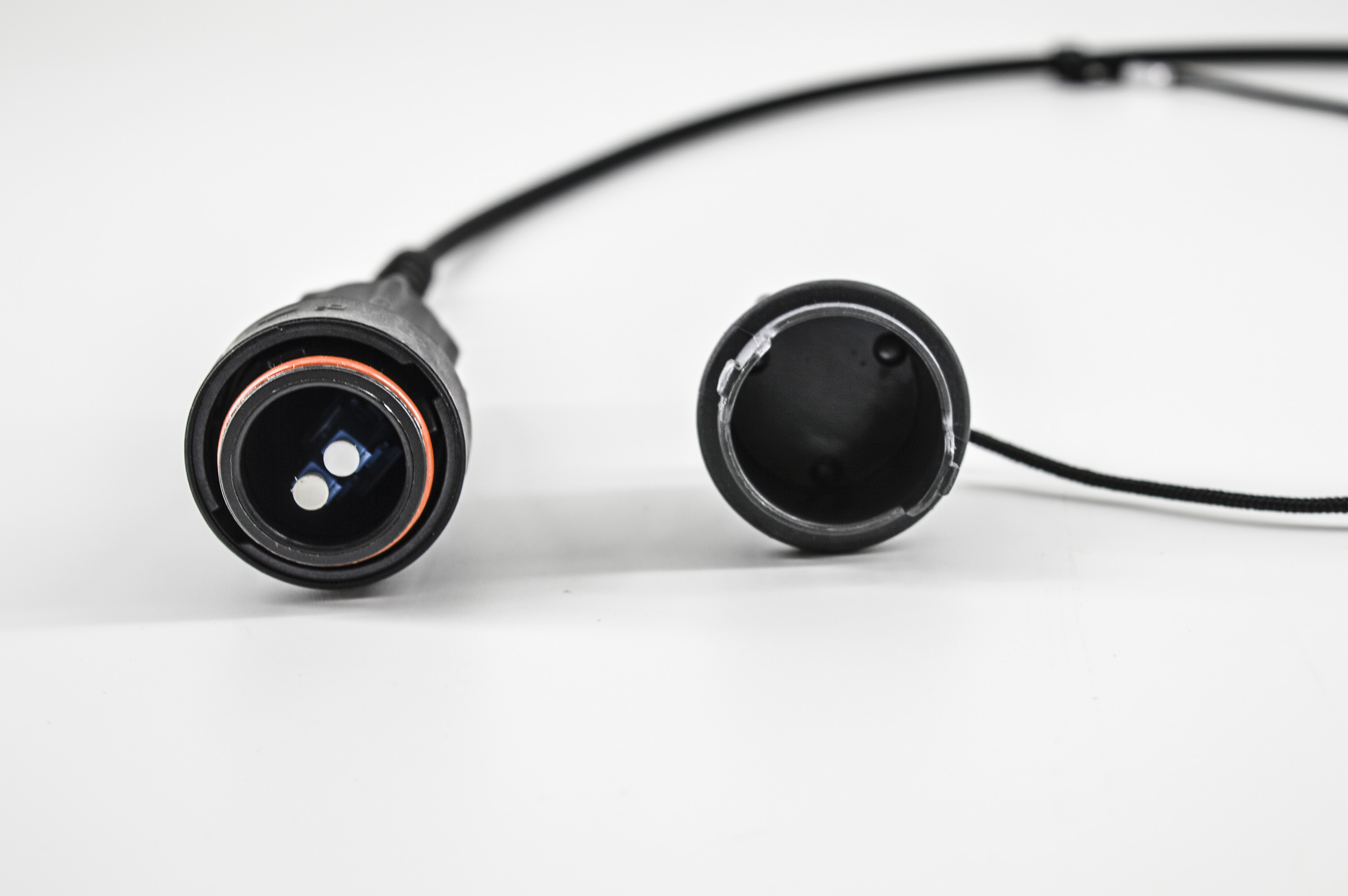

FTTA FullAXS CABLE ASSEMBLIES, IP-67 water and dust seal over LC Duplex, Remote Radio Units (RRU/RRH)
FullAXS-FTTA- strong, connector Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FullAXS connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.
For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.
Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:
- is a mechanical feedback to inform the operator when the connector completely docking
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
Feature:
One-hand mating
Duplex LC interface
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Open bulkhead for easy access to SFP
Positive feedback to operator when fully mated
Water proof, dust proof and corrosion resistant
Robust bayonet locking for easy, fast, and secure mating
Expansion to RJ45, etc
No Cable buckling at any time during or after installation
Cost effective glass-filled polymer or metal die casted bulkhead
Field installable version available
Specifications
| Parameter | Standard | Parameter | Standard |
| 150 N Pull Force | IEC61300-2-4 | Temperature | 40°C – +85°C |
| Vibration | GR3115 (3.26.3) | Cycles | 50 Mating Cycles |
| Salt Mist | IEC 61300-2-26 | Protection Class/Rating | IP67 |
| Vibration | IEC 61300-2-1 | Mechanical Retention | 150 N cable retention |
| Shock | IEC 61300-2-9 | Interface | LC interface |
| Impact | IEC 61300-2-12 | Adapter Footprint | 36 mm x 36 mm |
| Temperature / Humidity | IEC 61300-2-22 | Duplex LC Interconnect | MM or SM |
| Locking Style | Bayonet style | Tools | No tools required |
