CATV/FTTH Fusion Fiber Optic Splitter Single Mode 1310/1550nm 1X2 1 In 2 Out

Brand Name : UNIFIBER

Model Number : DWC

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5-8days

Packaging Details : Blister case

Package : Steel tube,ABS box,LGX box

Coupling Ratio : 50/50,40/60,30/70...5/95,1/99 or Customized

Grade : P grade or A grade

Size : Standard size or Mini Size

Connector : FC,SC,LC,ST or customized

Pigtail length : Customized

Contact Now

Single Mode 1310/1550nm 1X2 Dual Window Coupler,CATV/FTTH fusion optical fiber splitter 1 in 2 out SC/LC/FC/ST connector
Dual window coupler (DWC) is built by asymmetric coupling technique. The operating bandwidth of this normal coupler is expanding to ±40nm, and the ultra broadband coupler is expanding to ±80nm. The DWC coupler has the same coupling ratio on both 1310nm and 1550nm communication windows, and with low excess loss and low PDL. DWC couplers are widely used for communication systems, CATV, and FTTH.


Features
Low excess loss
Low PDL
High stability and reliability


Application
CATV Links

PON Networks​

FTTX Systems

Optical Signal Distribution



Parameter Dual Window Coupler(DWC)
Grade P A P A
Operating wavelength (nm) 1310 and 1550
Operating bandwidth (nm) ±40 ±80
Typical excess loss (dB) 0.07 0.1 0.07 0.1
Insertion loss (dB) 50/50 ≤3.6 ≤3.8 ≤3.8 ≤4.0
45/55 ≤4.2/3.2 ≤4.4/3.4 ≤4.5/3.3 ≤4.7/3.5
40/60 ≤4.7/2.7 ≤4.9/2.9 ≤5.0/2.8 ≤5.2/3.0
35/65 ≤5.4/2.4 ≤5.7/2.6 ≤5.8/2.5 ≤6.1/2.7
30/70 ≤6.0/1.9 ≤6.3/2.1 ≤6.4/2.0 ≤6.7/2.2
25/75 ≤7.0/1.7 ≤7.3/1.9 ≤7.3/1.7 ≤7.7/1.9
20/80 ≤7.9/1.3 ≤8.4/1.4 ≤8.3/1.3 ≤8.7/1.5
15/85 ≤9.5/1.0 ≤10.0/1.2 ≤9.6/1.0 ≤10.1/1.2
10/90 9.2~11.2/≤0.75 8.80~11.40 /≤0.8 9.15~11.05 /≤0.75 8.75~11.45/≤0.8
5/95 12.05~14.15/≤0.4 11.60~14.60 /≤0.5 12.00~14.25/≤0.45 11.50~14.70/≤0.5
3/97 14.1~16.5/≤0.35 13.60~17.05/≤0.45 14.00~16.60 /≤0.35 13.45~17.15/≤0.45
2/98 15.75~18.45/≤0.3 15.15~19.00/≤0.4 15.60~18.60/≤0.3 14.95~19.20/≤0.4
1/99 18.6~21.6 /≤0.25 17.95~22.25/≤0.35 18.35~21.85/≤0.25 17.60~22.55/≤0.35
PDL (dB) ≤0.15 ≤0.2 ≤0.15 ≤0.2
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85
PackageDimension 250μm bare fiber:Φ3.0×45mm    900μm loose tube:Φ3.0×54mm 900um/2mm/3mm loosetube:90×20×10mm
*The above specification is without connector
*Insertion Loss around 1380nm (water peak) is not counted in the specifications above.

CATV/FTTH Fusion Fiber Optic Splitter Single Mode 1310/1550nm 1X2 1 In 2 Out


Product Tags:

fiber optic plc splitter



fiber optic cable splitter


Buy cheap CATV/FTTH Fusion Fiber Optic Splitter Single Mode 1310/1550nm 1X2 1 In 2 Out product

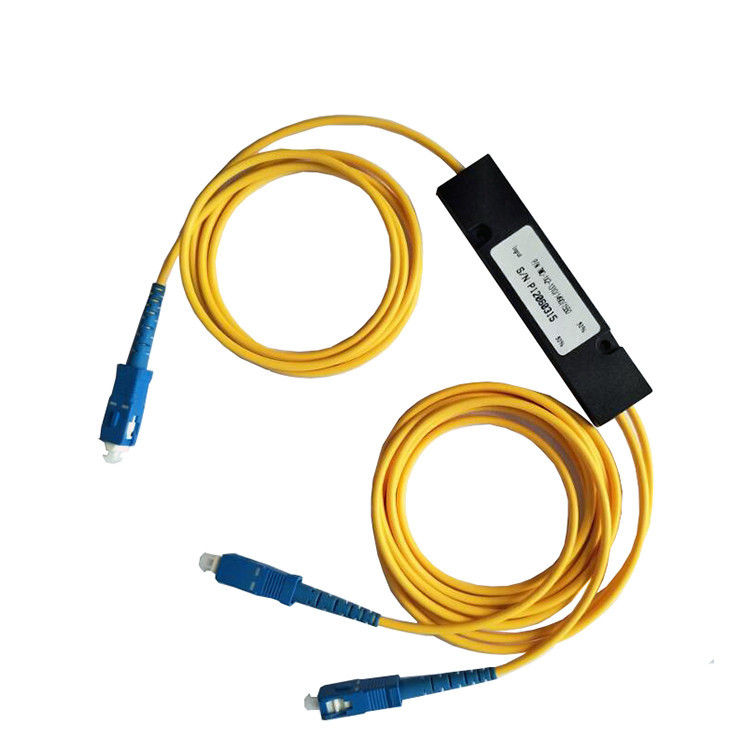

CATV/FTTH Fusion Fiber Optic Splitter Single Mode 1310/1550nm 1X2 1 In 2 Out Images
