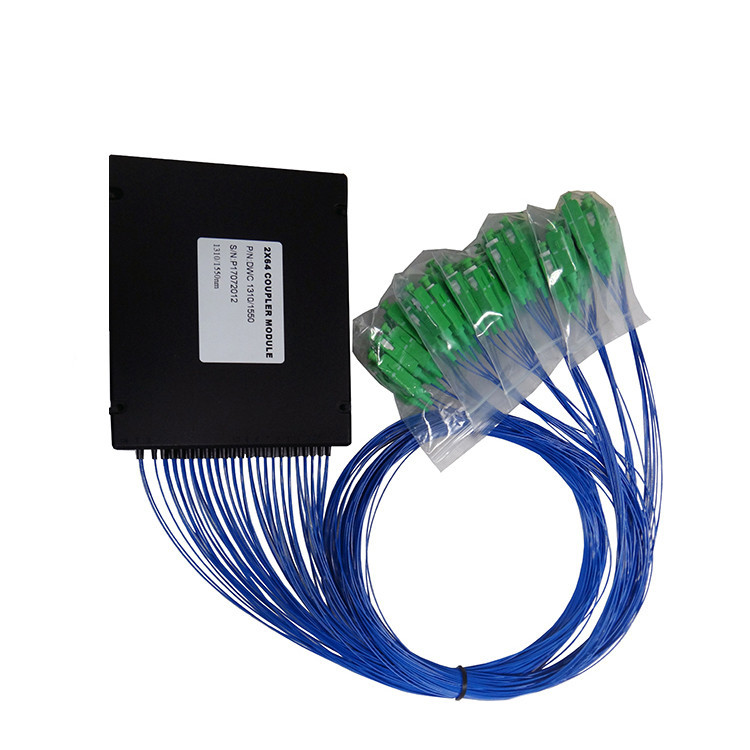

2x64 Passive Optical Fiber Splitter Coupler Module G657A1 For FTTX Solutions

  • 1
  • 2
  • 3

Brand Name : UNIFIBER

Model Number : 64WPLCSCA

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5~8 business days

Packaging Details : Individual blister Case or Carton Box

Package Style : ABS box,Mini Steel Tube,LGX Cassette

Configuration Type : 1x2,1x4,1x8,1x16,1x32,1x64

Connector : SC,LC,FC,ST or Customzied

Pigtail Length : Customized

FIber type : G657A1

Wavelength : 1260~1650nm

Contact Now

2x64 passive fiber splitter coupler module G657A1 SC APC connector for FTTX solutions

Fiber Optic PLC Splitters is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx in PON, CWDM, DWDM and optical cable TV System. It’s also responsible to distribute optical signals from Central Office (CO) to multiple premise locations. We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.



FEATURES

Low Insertion loss and PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability





APPLICATION

FTTX Systems
PON Networks
CATV
Optical Signal Distribution



Specification

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.6/4.0 7.2/7.4 10.2/10.5 13.5/13.7 16.2/16.7 20.5/21 23.8/24.5
uniformity (dB) 0.4 0.6 0.8 1.0 1.2 1.8 2.0
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL(dB) 0.5
Operating/Storage Temperature (℃) -40~85



Specifications (2XN):

Parameters 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.8/4.2 7.5/7.8 10.7/11 14/14.2 17/17.5 21/21.5 25/25.5
uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.0 2.5
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.4
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL (dB) 0.5
Operating/Storage Temperature (℃) -40~85
Note: All the data above does not include connector
